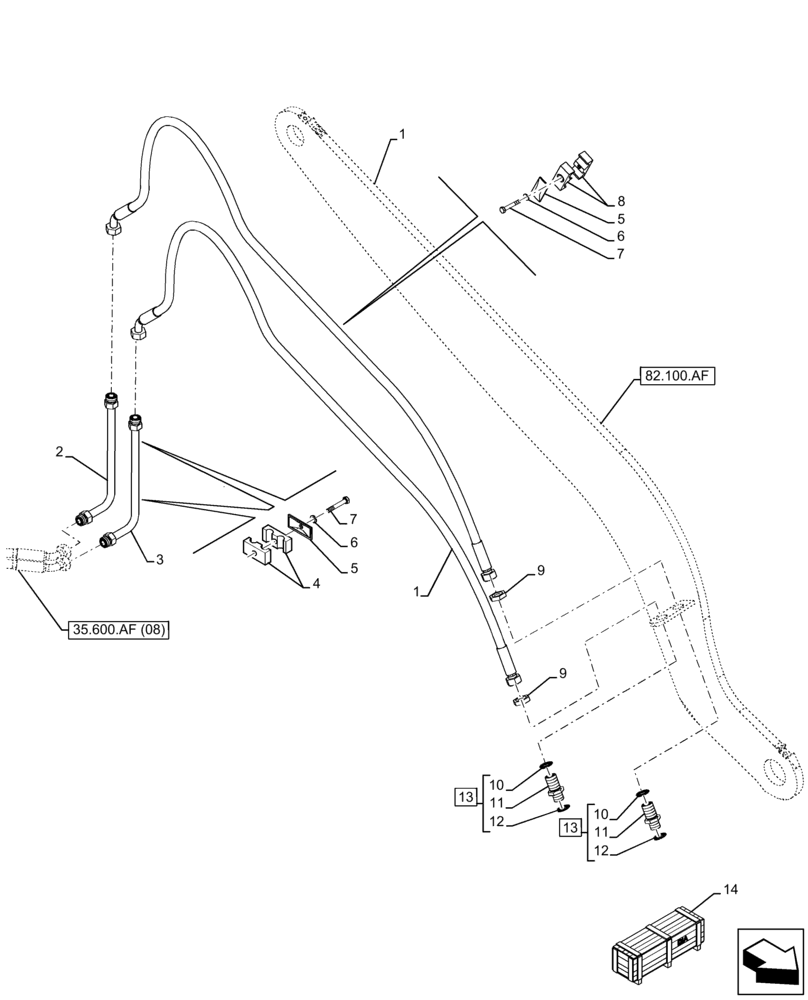

Запчасти Case 221F (35.701.AD[03]) - VAR - 732003, 732004, 734591, 734649, 734650 - LOADER BUCKET, CONTROL, HYD. LINE (35) - HYDRAULIC SYSTEMS

1

47555047

HYDRAULIC HOSE

High Flow

2шт.

2

47554856

HYD TUBE

High Flow

1шт.

3

47554855

HYD TUBE

High Flow

1шт.

4

1570971

CLAMP

2шт.

5

900529

PLATE

4шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

4шт.

8

1589857

CLAMP

2шт.

9

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 13

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

2шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

13

47368444

HYD CONNECTOR

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 12 (Qty 1)

2шт.

14

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
