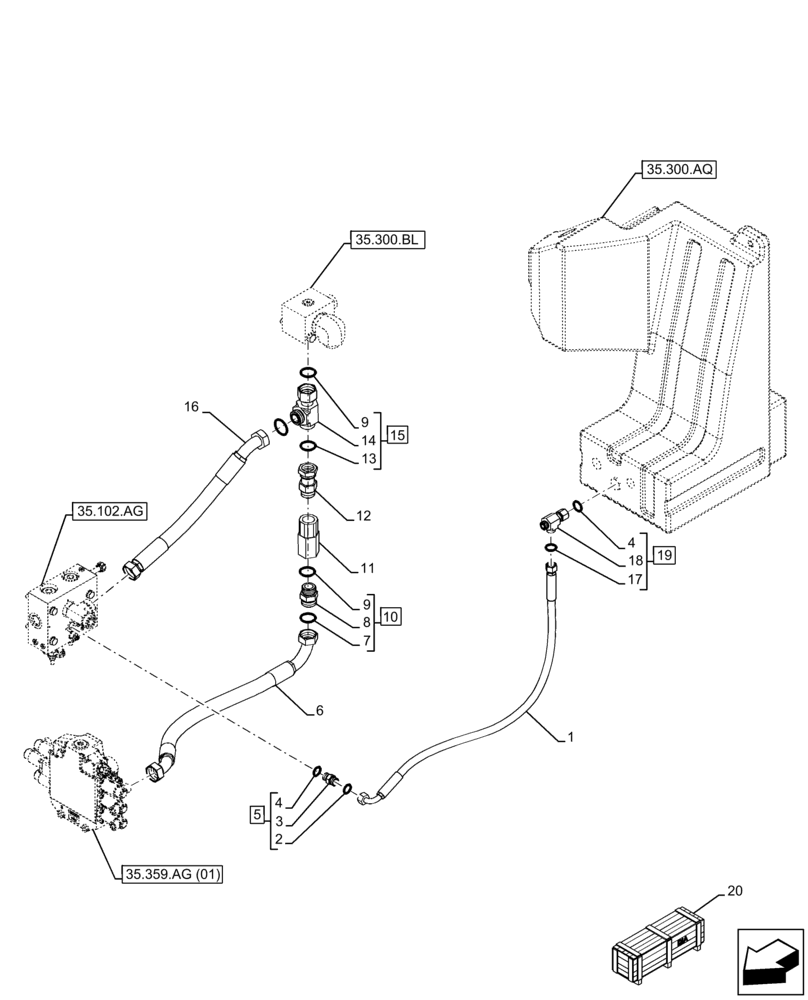

Запчасти Case 221F (35.600.AF[09]) - VAR - 732003, 732004, 734585, 734591, 734649, 734650 - CONTROL VALVE, RETURN LINE (35) - HYDRAULIC SYSTEMS

1

47569265

HYDRAULIC HOSE

High Flow T to Oil Reservoir

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 2, 3, 4 (Qty 1)

1шт.

6

47662416

HYDRAULIC HOSE

Main Valve T to Manifold, L=700mm, Serial Range: -NFHP00138

1шт.

6

47509164

HYDRAULIC HOSE

Main Valve T to Manifold, L=930mm, Start Serial: NFHP00139

1шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

10

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, 7, 8, 9 (Qty 1)

1шт.

11

85805824

CHECK VALVE

1шт.

12

87672177

HYD CONNECTOR

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 15

2шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

15

86641295

TEE,1-7/16"-12 ORFS to Swivel

ASSY, Incl 9 (Qty 1), 13, 14

1шт.

16

47569269

HYDRAULIC HOSE

Exhaust Manifold EF to High Flow Valve

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 19

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 19

1шт.

19

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 4 (Qty 1), 17, 18

1шт.

20

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
