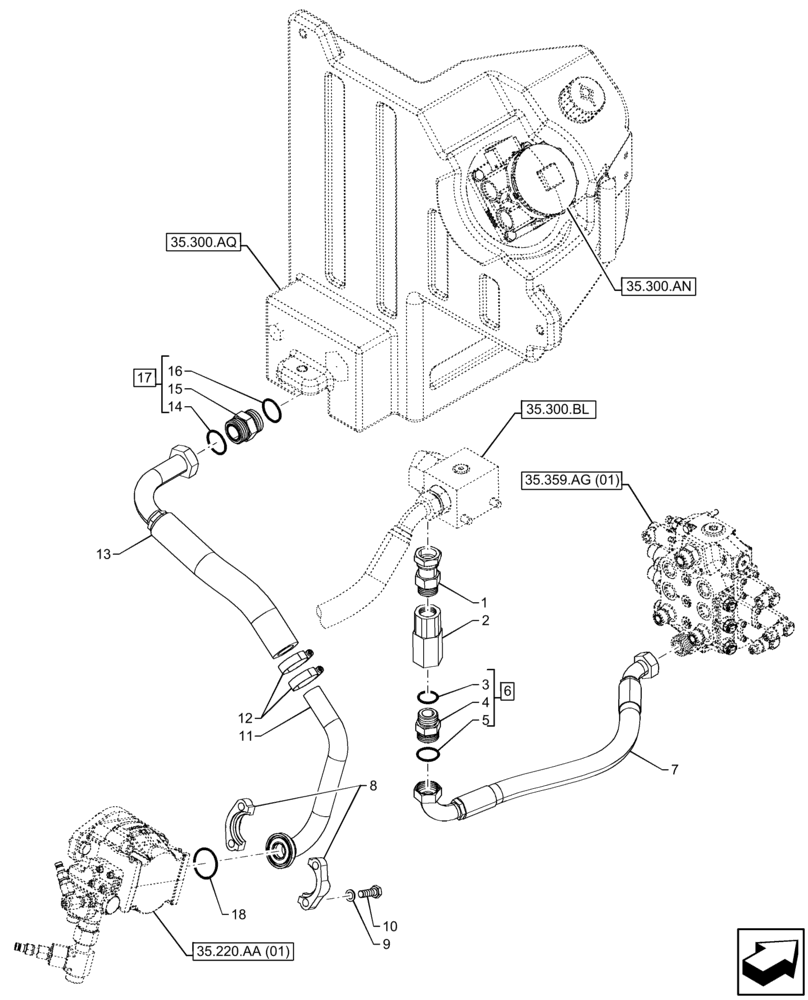

Запчасти Case 221F (35.600.AF[05]) - VAR - 402045, 732001, 732002, 732005, 732006, 734647, 734648, 734651, 734652 - CONTROL VALVE, RETURN, LINE (35) - HYDRAULIC SYSTEMS

1

87672177

HYD CONNECTOR

1шт.

2

85805824

CHECK VALVE

1шт.

3

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 3 - 5

1шт.

7

47662416

HYDRAULIC HOSE

Main Valve T to Divider

1шт.

8

70921118

CLAMP,Half

, Years: -29-APR-15

2шт.

9

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

, Years: -29-APR-15

4шт.

10

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

, Years: -29-APR-15

4шт.

11

47460795

HYD TUBE

Suction Gear Pump to Oil Tank, Years: -29-APR-15

1шт.

12

79083846

HOSE CLAMP,M40-60

, Years: -29-APR-15

2шт.

13

47460805

HYDRAULIC HOSE

Suction Hydraulic Tank to Gear Pump, Years: -29-APR-15

1шт.

14

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

, Years: -29-APR-15

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 17, Years: -29-APR-15

1шт.

16

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

, Years: -29-APR-15

1шт.

17

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ASSY, Incl 14 - 16, Years: -29-APR-15

1шт.

18

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

, Years: -29-APR-15

1шт.
