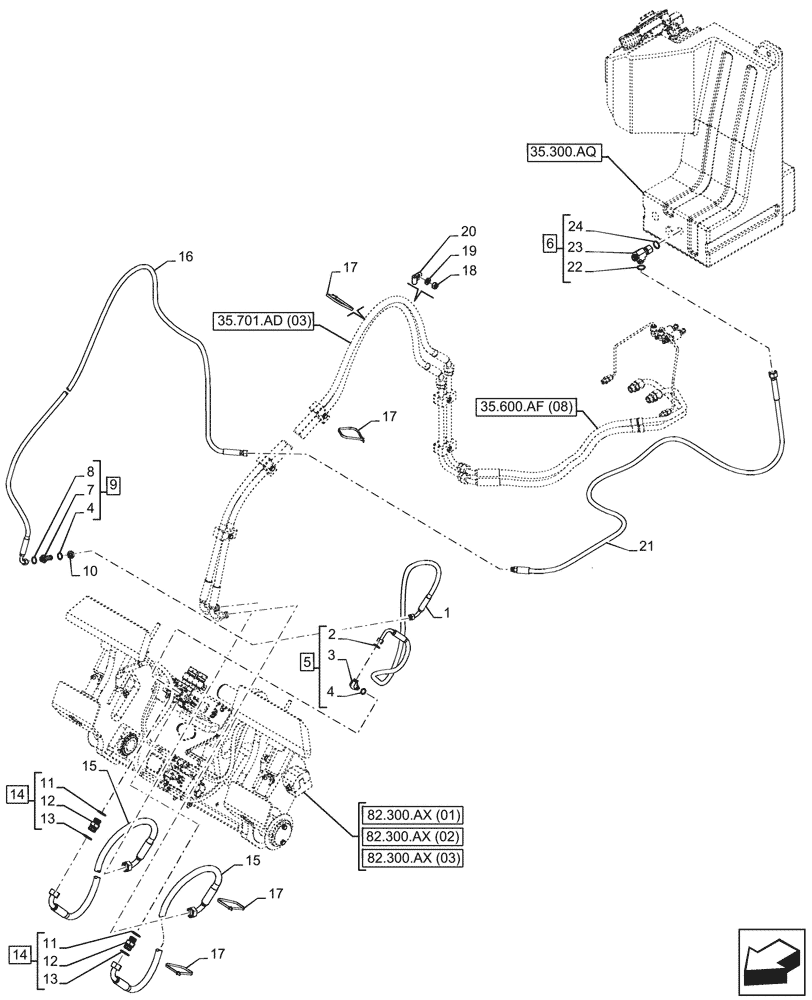

Запчасти Case 221F (35.600.AD[02]) - VAR - 402031, 732004, 732006 - QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

47482769

HOSE

Drain

1шт.

2

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

87681199

90 ELBOW

ASSY, Incl 2 - 4 (Qty 1)

1шт.

6

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 22 - 24

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

O Ring, Incl in 9

1шт.

9

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 4 (Qty 1), 7, 8

1шт.

10

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

2шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 11 (Qty 1), 12 (Qty 1), 13 (Qty 1)

2шт.

15

47481733

FLEXIBLE HOSE

3rd Function

2шт.

16

47483332

HOSE

Drain

1шт.

17

4982514

CABLE TIE,188mm L

4шт.

18

86500689

NUT,M10 x 1.5, Cl 10

1шт.

19

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

21

47686922

HYDRAULIC HOSE

Drain

1шт.

22

NSS

NOT SOLD SEPARAT

O Ring, Incl in 6

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
