(35.359.AC[01]) - PILOT VALVE

Запчасти Case 221F (35.359.AC[01]) - PILOT VALVE (35) - HYDRAULIC SYSTEMS

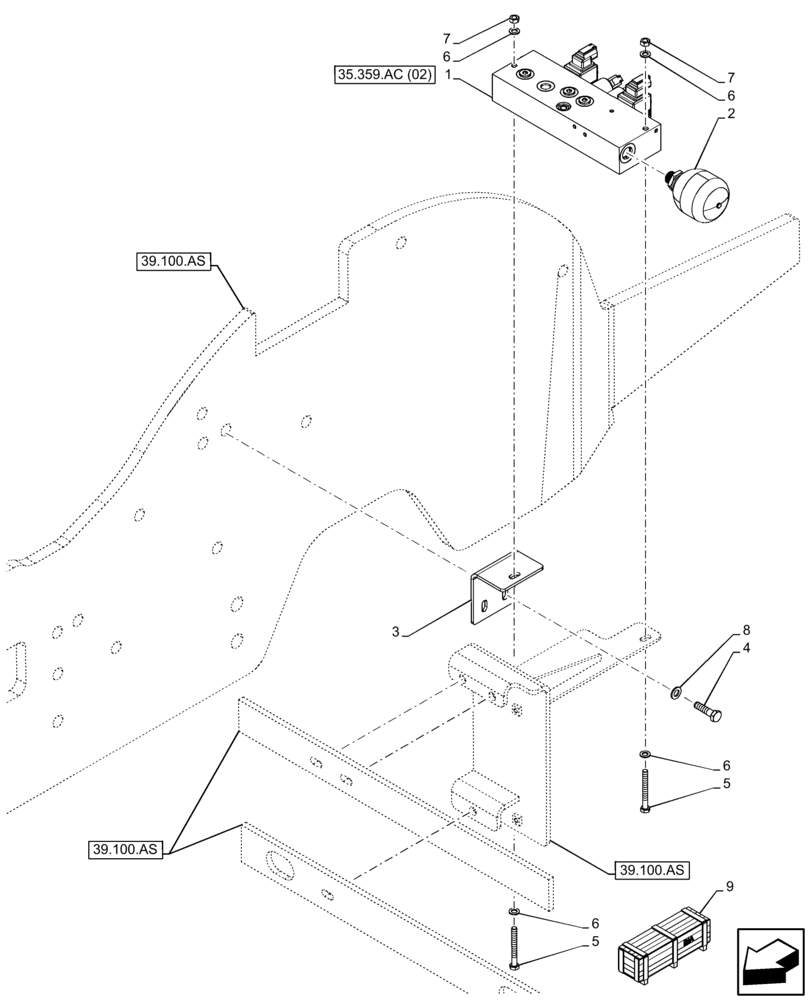

Схема запчастей Case 221F - (35.359.AC[01]) - PILOT VALVE (35) - HYDRAULIC SYSTEMS
6
39.100.as
39.100.as
8
9
4
7
5
1
6
35.359.ac (02)
6
39.100.as
6
7
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47443151

HYDRAULIC VALVE

ASSY

1шт.

2

87425225

ACCUMULATOR,0.16L

1шт.

3

47443150

PLATE

1шт.

4

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

5

86516395

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

47704680

CONSTRUCTION DIA

Hydraulic Standard Provision W50C Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704682

CONSTRUCTION DIA

Hydraulic Standard Provision W50C, W60C TC, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704683

CONSTRUCTION DIA

Hydraulic Standard Provision W60C Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704684

CONSTRUCTION DIA

Hydraulic Standard Provision W70C Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704686

CONSTRUCTION DIA

Hydraulic Standard Provision W80C Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
