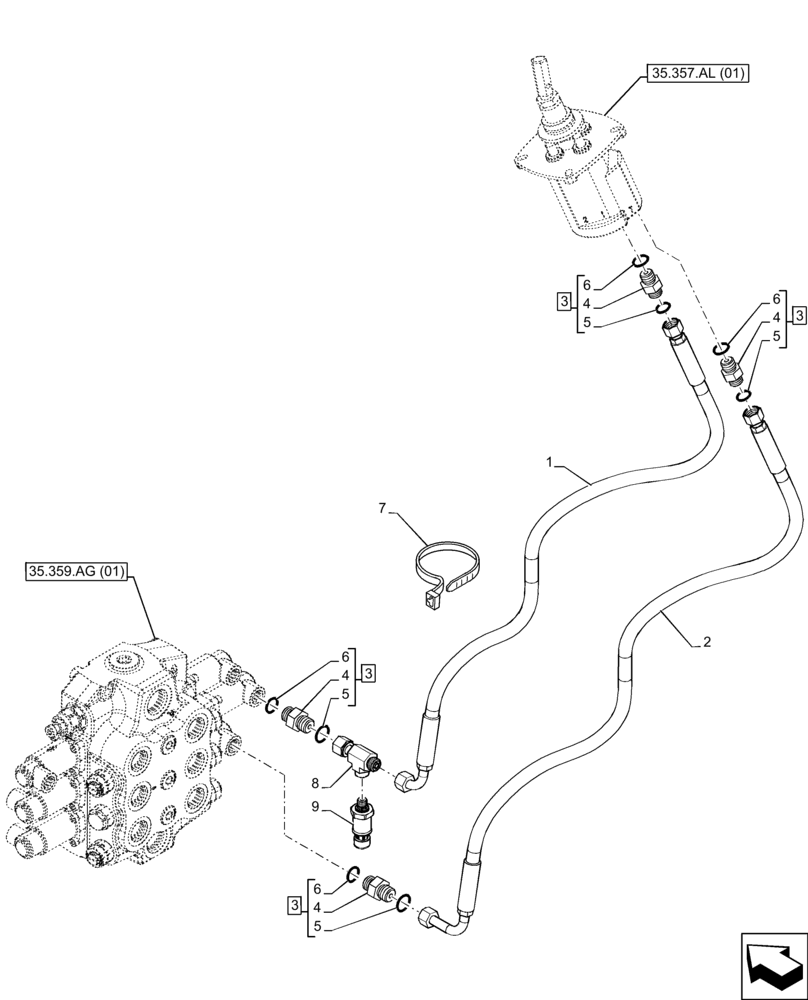

Запчасти Case 221F (35.355.AC) - PILOT VALVE, CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47417943

HYDRAULIC HOSE

Pilot Valve 1 to Main Valve

1шт.

2

47417955

HYDRAULIC HOSE

Pilot Valve 4 to Main Valve

1шт.

3

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

4шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

4шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

7

4982514

CABLE TIE,188mm L

2шт.

8

8602743

TEE

1шт.

9

84597744

SENSOR

1шт.
