(35.300.AD[10]) - VAR - 732003, 732004, 734585, 734591, 734649, 734650 - HYDROSTATIC PUMP, TANK, LINE - BEGIN SN NFHP00139

Запчасти Case 221F (35.300.AD[10]) - VAR - 732003, 732004, 734585, 734591, 734649, 734650 - HYDROSTATIC PUMP, TANK, LINE - BEGIN SN NFHP00139 (35) - HYDRAULIC SYSTEMS

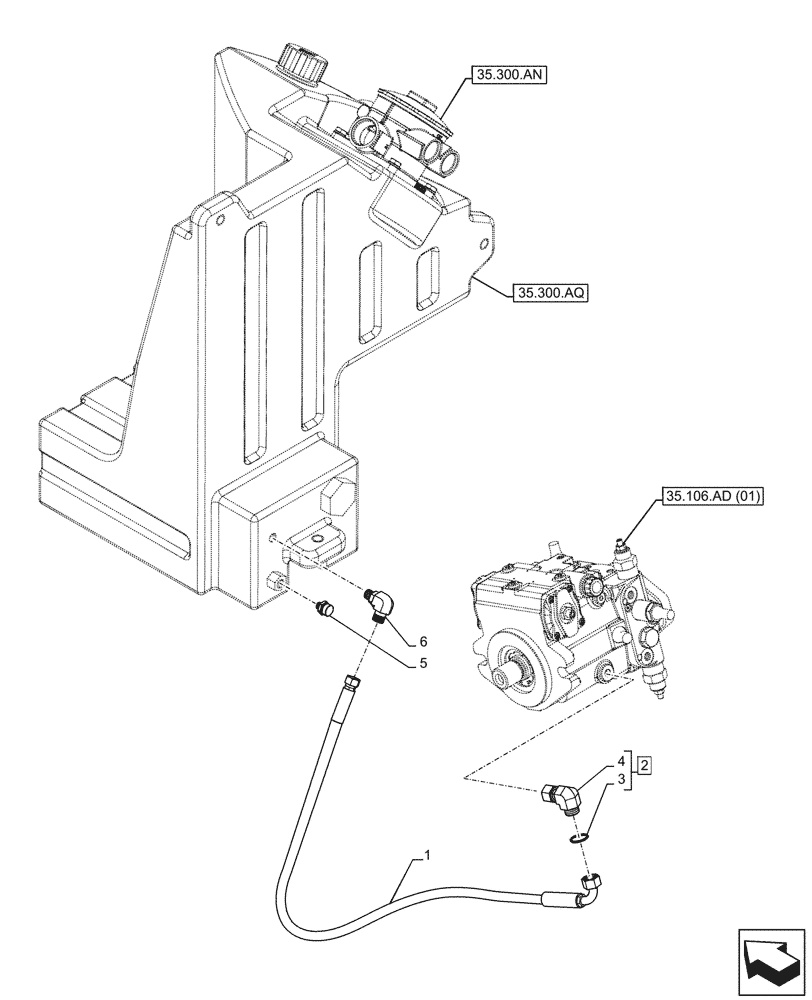

Схема запчастей Case 221F - (35.300.AD[10]) - VAR - 732003, 732004, 734585, 734591, 734649, 734650 - HYDROSTATIC PUMP, TANK, LINE - BEGIN SN NFHP00139 (35) - HYDRAULIC SYSTEMS
35.300.aq
4
5
1
6
2
3
35.300.an
35.106.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47606212

HYDRAULIC HOSE

Ride Control

1шт.

2

5194728

90 ELBOW

ASSY, Incl 3, 4

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

9625178

PLUG,9/16" - 18 ORB

1шт.

6

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

1шт.
