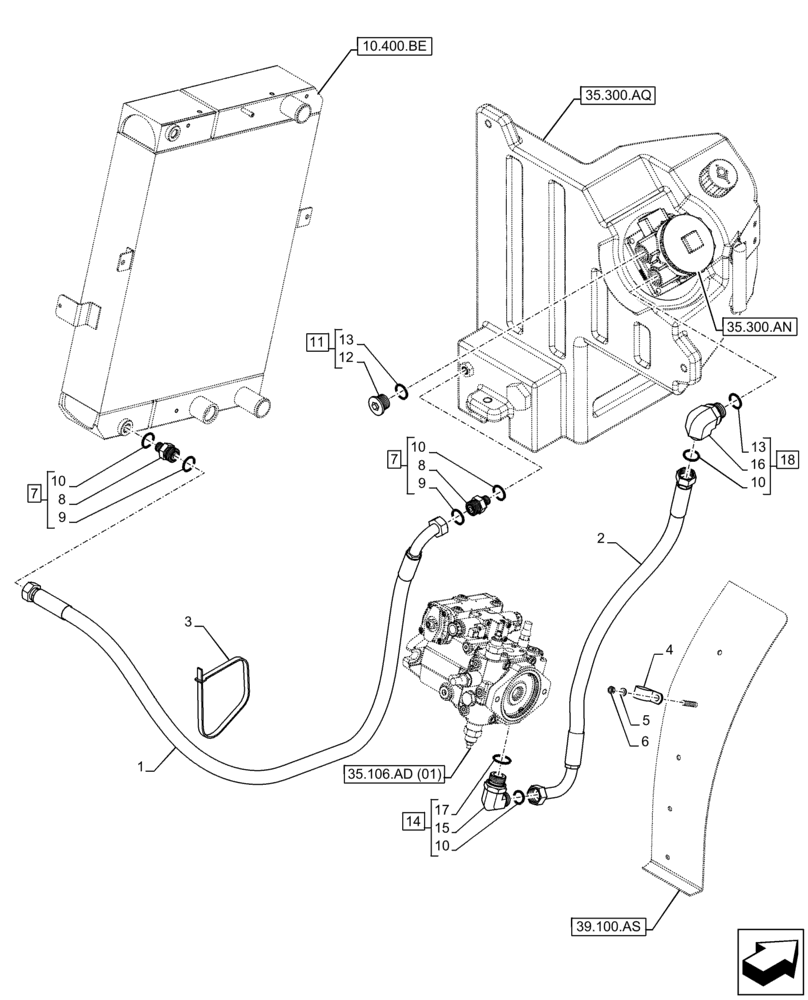

Запчасти Case 221F (35.300.AD[01]) - HYDROSTATIC PUMP, TANK, COOLER, LINE (35) - HYDRAULIC SYSTEMS

1

47449723

HYDRAULIC HOSE

Cooler to Hydraulic Tank, Serial Range: -NFHP00138

1шт.

2

47452591

HYDRAULIC HOSE

Hydrostatic Pump to Oil Filter

1шт.

3

4982514

CABLE TIE,188mm L

, Serial Range: -NFHP00138

2шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

43362

NUT,M8 x 1.25, Cl 10

1шт.

7

87530400

HYD CONNECTOR

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1), Serial Range: -NFHP00138

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

11

87363628

PLUG,1 - 5/16" - 12

ASSY, Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

13

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

14

47494278

90 ELBOW

ASSY, Incl 10 (Qty 1), 15, 17

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

17

84288615

SEALING RING

1шт.

18

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 10 (Qty 1), 13 (Qty 1), 16

1шт.
