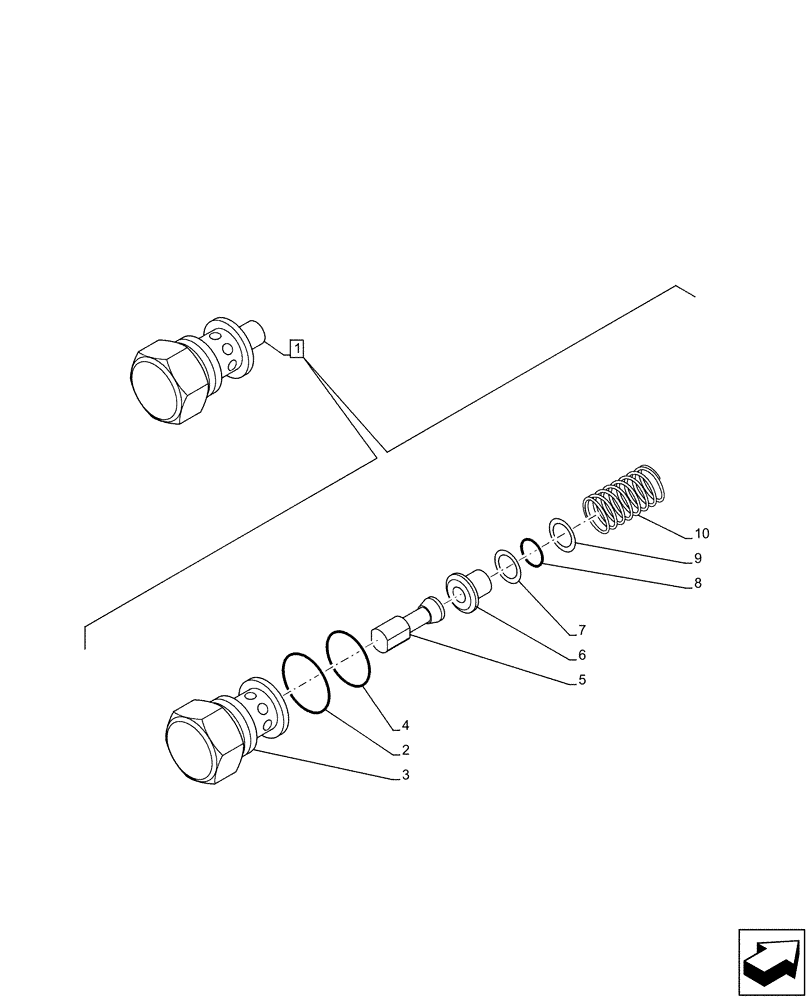

Запчасти Case 221F (35.106.AD[08]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47628178

VALVE PRESSURE RELIE

ASSY, Incl 2 - 10

1шт.

2

1461934

SEALING RING

1шт.

Include also Gaskets in Figure 35.106.AD (03), (04), (05), (06), (07), (09), (10)

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
