(35.106.AD[02]) - HYDROSTATIC PUMP, COMPONENTS

Запчасти Case 221F (35.106.AD[02]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

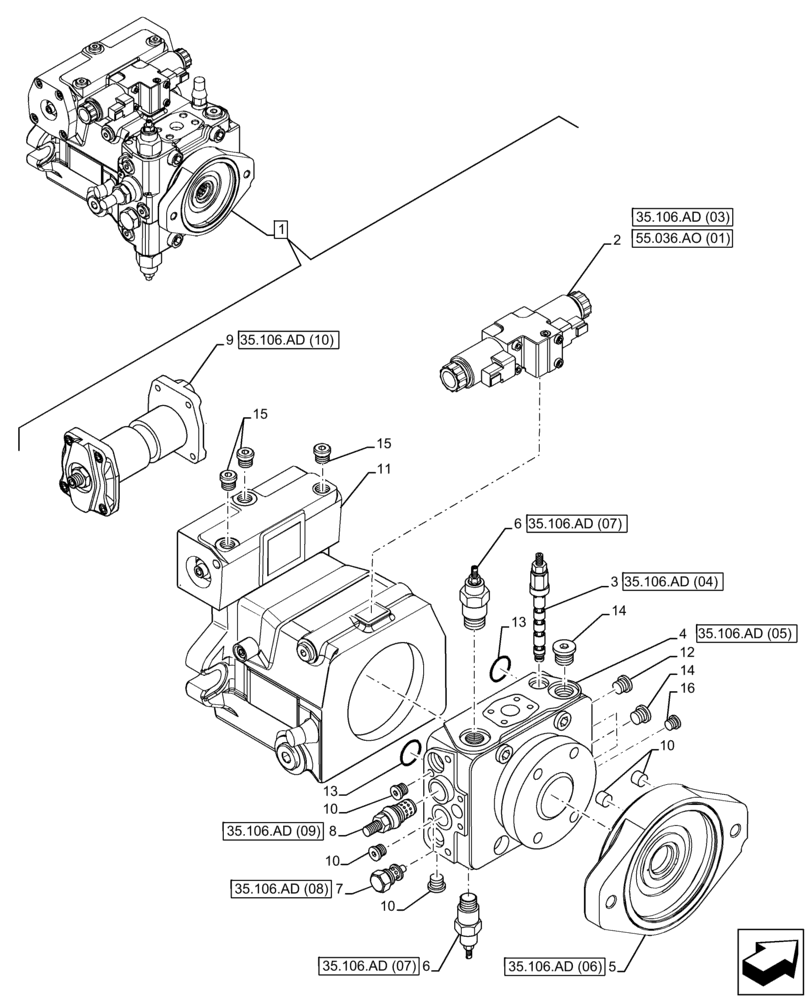

Схема запчастей Case 221F - (35.106.AD[02]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.106.ad (03)
55.036.ao (01)
35.106.ad (07)
8
9
35.106.ad (09)
35.106.ad (05)
10
13
6
15
2
6
10
3
16
14
35.106.ad (04)
12
35.106.ad (07)
4
35.106.ad (10)
7
15
35.106.ad (08)
35.106.ad (06)
11
1
5
10
14
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47585098

HYDRAULIC PUMP

ASSY, Incl 2 - 16

1шт.

2

47628173

VALVE

4/3-Way, ASSY

1шт.

3

47628199

VALVE

Pressure, ASSY

1шт.

4

47628200

PLATE

ASSY, Serial Range: -NEHP00254

1шт.

5

47628202

PUMP

Gear Internal, ASSY

1шт.

6

47628203

VALVE PRESSURE RELIE

ASSY

2шт.

7

47628178

VALVE PRESSURE RELIE

ASSY

1шт.

8

47628204

CONTROL VALVE

Cartridge, ASSY

1шт.

9

47628206

CONTROL

ASSY, Serial Range: -NEHP00254

1шт.

10

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

12

1468962

PLUG

1шт.

13

87758186

SEAL KIT

Front Pump

1шт.

14

970659

PLUG,M12 x 1.5

5шт.

15

1403736

DRAIN PLUG,M8 x 1

3шт.

16

1415651

KEY

4шт.
