Запчасти Case 221F (33.202.AP) - BRAKE LINE (33) - BRAKES & CONTROLS

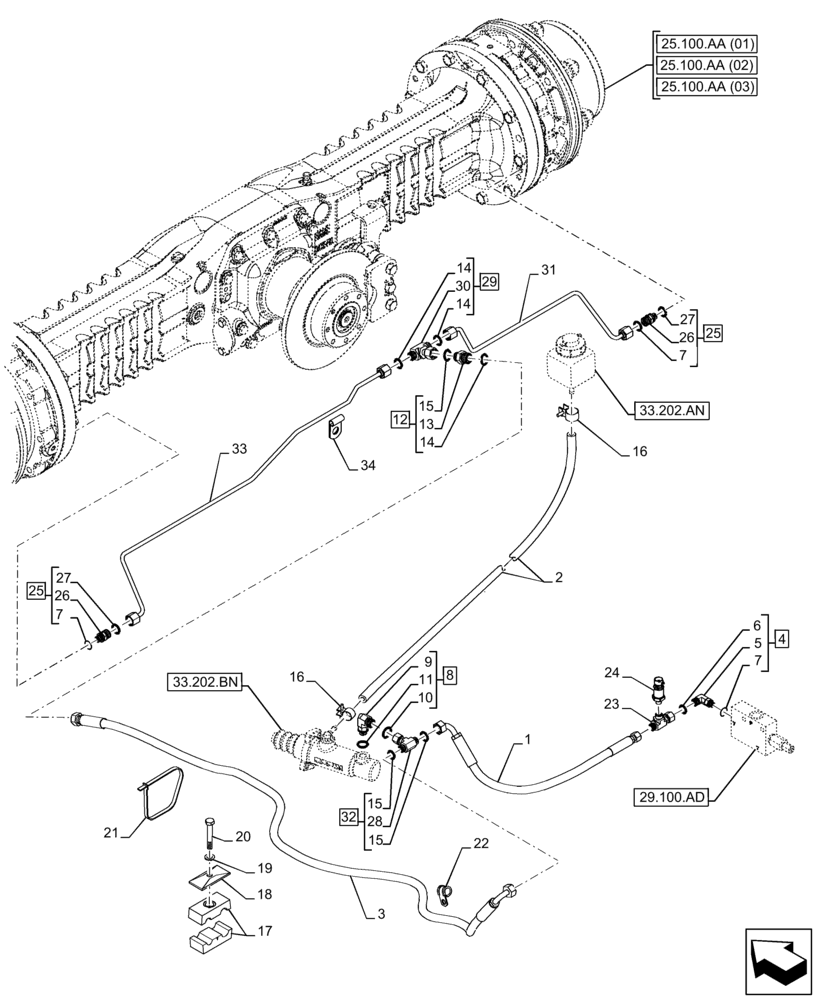

Схема запчастей Case 221F - (33.202.AP) - BRAKE LINE (33) - BRAKES & CONTROLS
7
7
23
14
12
15
33.202.an
5
2
26
18
30
17
25
1
16
34
24
14
25.100.aa (03)
22
16
19
14
29.100.ad
21
15
25.100.aa (02)
10
8
27
25
4
3
28
7
31
13
25.100.aa (01)
20
11
33
27
9
26
29
15
32
33.202.bn
6

Артикул

Название

Примечание

Количество

1

47585927

FLEXIBLE HOSE

Brake Pump to Inching Valve

1шт.

2

47489669

FLEXIBLE HOSE

Brake Pump to Oil Tank

1шт.

3

47642755

HYDRAULIC HOSE

Brake Pump to Front Axle

1шт.

4

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 5, 6, 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

7

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

3шт.

8

47127165

90 ELBOW

ASSY, Incl 9 - 11, Serial Range: -NGHP00035

1шт.

8

47907632

BANJO FITTING

, Start Serial: NGHP00036

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

11

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

12

84188429

FITTING

ASSY, Incl 13, 14 (Qty 1), 15 (Qty 1), Serial Range: -NFHP00618

1шт.

12

87010704

BHD LOCK NUT,11/16"-16

, Start Serial: NFHP00619

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

16

10186590

CLAMP,11mm - 13mm

2шт.

17

87000139

CLAMP

1шт.

18

900529

PLATE

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

1шт.

21

4982514

CABLE TIE,188mm L

1шт.

22

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

23

8602743

TEE

1шт.

24

84597744

SENSOR

Oil Pressure

1шт.

25

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

ASSY, Incl 7 (Qty 1), 26 (Qty 1), 27 (Qty 1), Serial Range: -NFHP00618

2шт.

25

47830691

, Start Serial: NFHP00619

HYD CONNECTOR

2шт.

26

NSS

NOT SOLD SEPARAT

Connector, Incl in 25

2шт.

27

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 32

1шт.

29

84364038

BRANCH TEE

ASSY, Incl 14 (Qty 2), 30, Serial Range: -NFHP00618

1шт.

29

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

, Start Serial: NFHP00619

1шт.

30

NSS

NOT SOLD SEPARAT

Tee, Incl in 29

1шт.

31

47579417

HYD TUBE

RH Brake Line, Serial Range: -NFHP00618

1шт.

31

47862732

HYD TUBE

RH Brake Line, Start Serial: NFHP00619

1шт.

32

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 15 (Qty 2), 28

1шт.

33

47579405

HYD TUBE

LH Brake Line, Serial Range: -NFHP00618

1шт.

33

47862712

HYD TUBE

LH Brake Line, Start Serial: NFHP00619

1шт.

34

71405774

RETAINER COLLAR

, Serial Range: -NFHP00618

1шт.

34

47829317

BRACKET

, Start Serial: NFHP00619

1шт.
