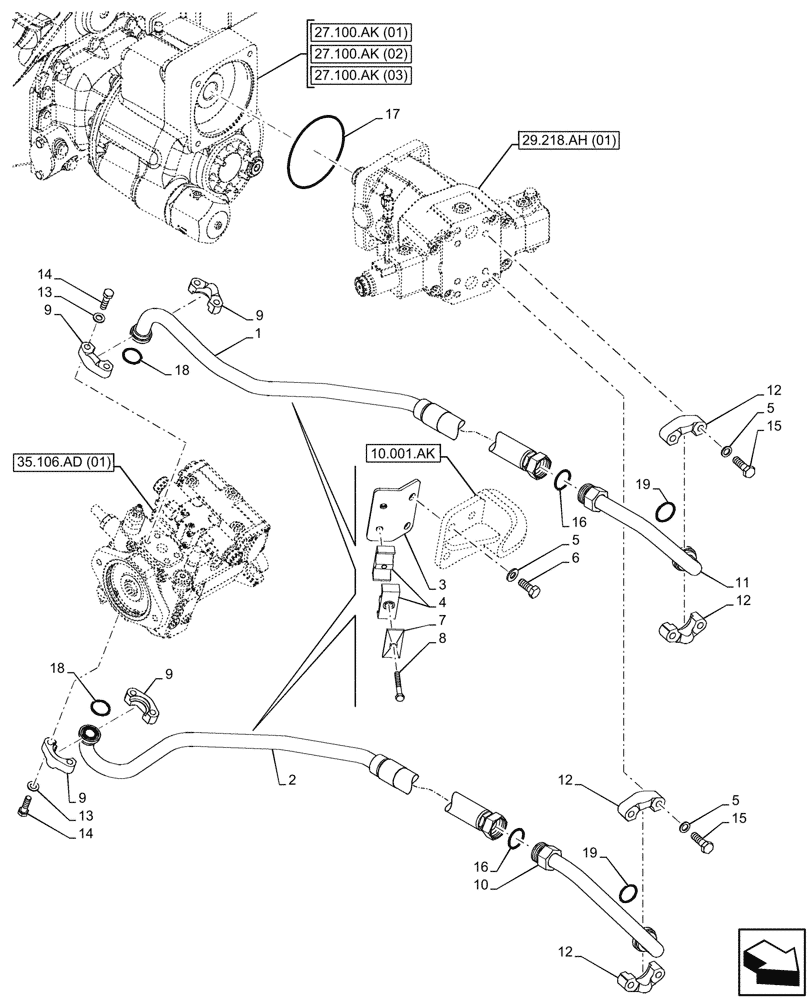

Запчасти Case 221F (29.218.AS) - HYDROSTATIC MOTOR, PUMP, HOSE, SEAL (29) - HYDROSTATIC DRIVE

1

47727012

HYD TUBE

Main Pump A to Line Hydrostatic Motor, Years: -30-AUG-16

1шт.

1

47946515

HYD TUBE

Main Pump A to Line Hydrostatic Motor, Start Year: 31-AUG-16

1шт.

2

47447212

HYD TUBE

Main Pump B to Line Hydrostatic Motor, Years: -30-AUG-16

1шт.

2

47946518

HYD TUBE

Main Pump B to Line Hydrostatic Motor, Start Year: 31-AUG-16

1шт.

3

47481423

BRACKET

1шт.

4

87000924

CLAMP

1шт.

5

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

10шт.

6

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

7

87000230

PLATE

1шт.

8

86625005

BOLT,Hex, M8 x 60mm, Cl 10.9

1шт.

9

727077

HALF-FLANGE

4шт.

10

47458852

HYD TUBE

Hydrostatic Motor A to Line Main Pump, Years: -30-AUG-16

1шт.

10

47945909

HYD TUBE

Hydrostatic Motor A to Line Main Pump, Start Year: 31-AUG-16

1шт.

11

47727069

HYD TUBE

Hydrostatic Motor B to Line Main Pump, Years: -30-AUG-16

1шт.

11

47945912

HYD TUBE

Hydrostatic Motor B to Line Main Pump, Start Year: 31-AUG-16

1шт.

12

991420

HALF-FLANGE

4шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

14

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

15

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

16

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

17

2978362

O-RING

1шт.

18

511029

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

19

70924696

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

2шт.
