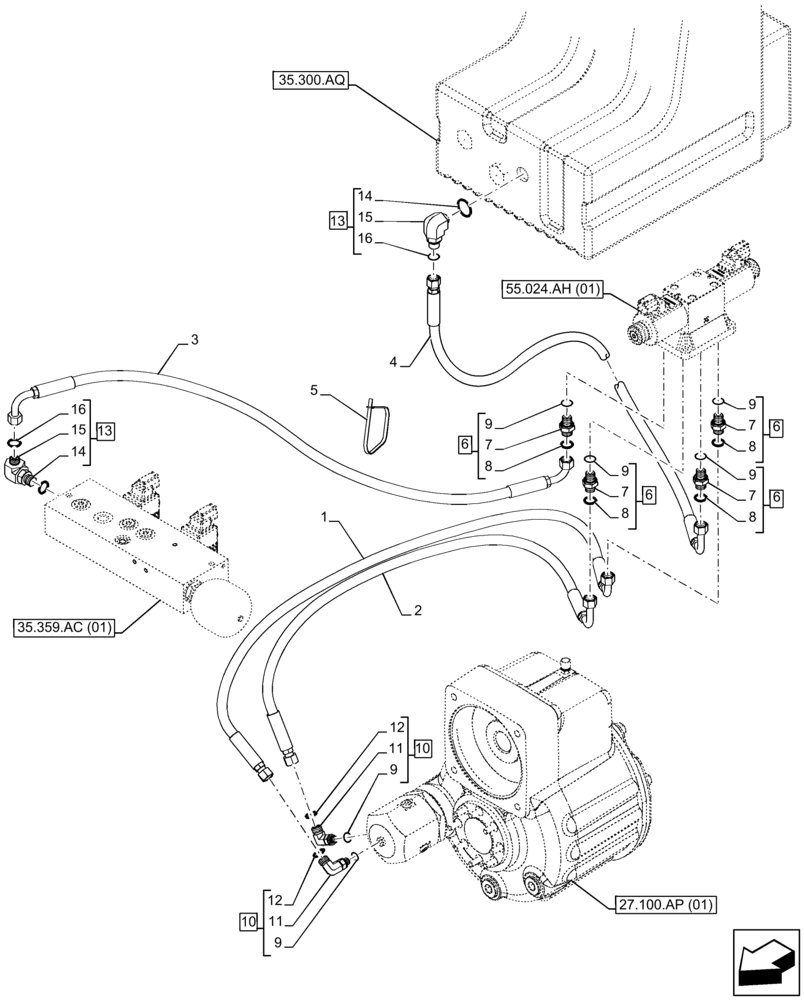

Запчасти Case 221F (29.204.AB[02]) - GEARSHIFT, VALVE, LINE (29) - HYDROSTATIC DRIVE

1

47508536

HYDRAULIC HOSE

Hydraulic Valve to Rear Axle

1шт.

2

47508540

HYDRAULIC HOSE

Hydraulic Valve to Rear Axle

1шт.

3

47488702

HYDRAULIC HOSE

Hydraulic Valve to Main Valve

1шт.

4

47488692

HYDRAULIC HOSE

Hydraulic Valve to Oil Tank

1шт.

5

4982514

CABLE TIE,188mm L

1шт.

6

47135740

HYD CONNECTOR

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

4шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

4шт.

8

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

9

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

6шт.

10

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 11 (Qty 1), 12 (Qty 1), 13 (Qty 1)

2шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

2шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

13

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 14 (Qty 1), 15 (Qty 1), 16 (Qty 1)

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

2шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
