(27.106.AQ[03]) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE, OIL LINE

Запчасти Case 221F (27.106.AQ[03]) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE, OIL LINE (27) - REAR AXLE SYSTEM

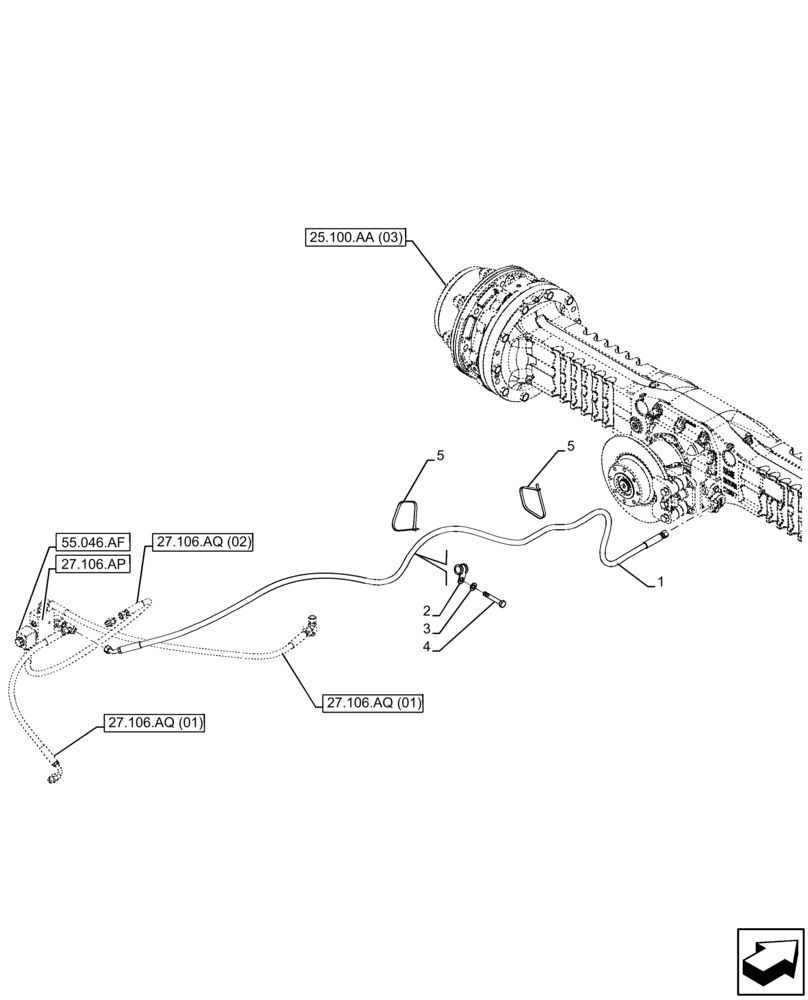

Схема запчастей Case 221F - (27.106.AQ[03]) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE, OIL LINE (27) - REAR AXLE SYSTEM
3
55.046.af
5
27.106.aq (02)
4
2
27.106.ap
27.106.aq (01)
25.100.aa (03)
1
5
27.106.aq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47622988

HYDRAULIC HOSE

Rear Axle to Control Valve

1шт.

2

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

1шт.

5

4982514

CABLE TIE,188mm L

2шт.
