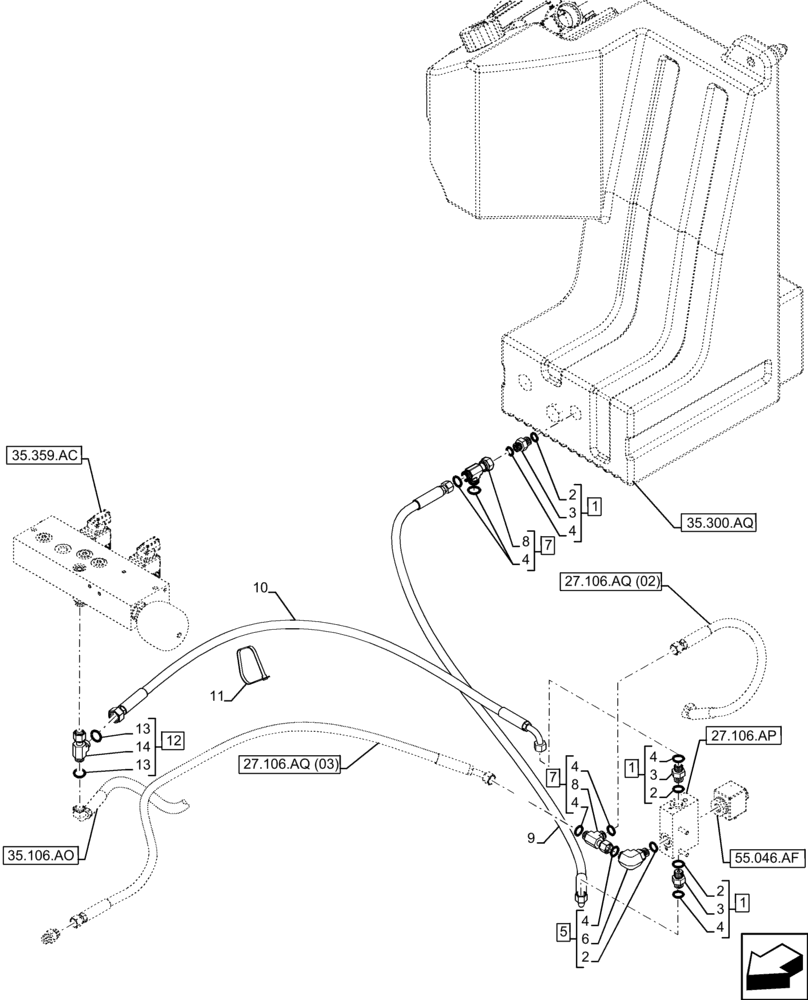

Запчасти Case 221F (27.106.AQ[01]) - VAR - 734515 - DIFFERENTIAL LOCK, CONTROL VALVE, OIL LINE (27) - REAR AXLE SYSTEM

1

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

3шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

3шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

7шт.

5

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 2 (Qty 1), 4 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

ASSY, Incl 4 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

47640791

HYDRAULIC HOSE

Oil Tank to Control Valve

1шт.

10

47491813

HYDRAULIC HOSE

Control Valve to Main Valve

1шт.

11

4982514

CABLE TIE,188mm L

3шт.

12

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 13, 14

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 12

1шт.
