(27.106.AP) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE

Запчасти Case 221F (27.106.AP) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE (27) - REAR AXLE SYSTEM

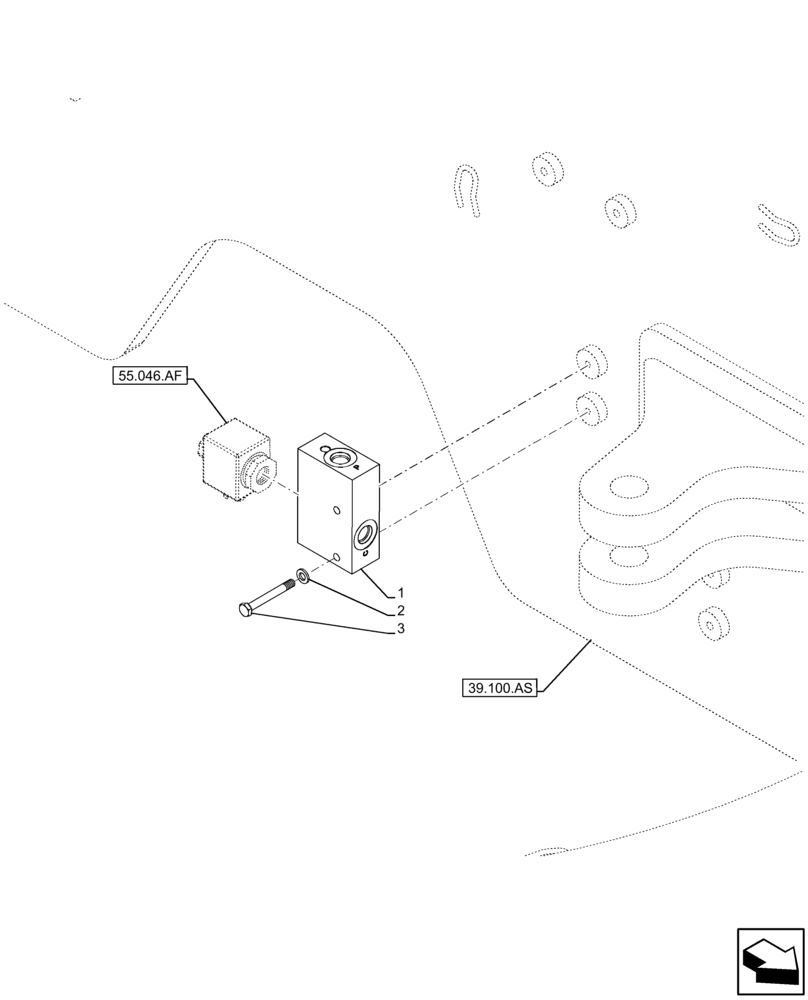

Схема запчастей Case 221F - (27.106.AP) - VAR - 734512, 734515 - DIFFERENTIAL LOCK, CONTROL VALVE (27) - REAR AXLE SYSTEM
39.100.as
2
1
3
55.046.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85810977

CARTRIDGE

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

3

86556136

BOLT,Hex, M6 x 50mm, Cl 10.9

, Years: -29-APR-15

2шт.

3

84068386

BOLT,Hex, M6 x 45mm, Cl 10.9

, Start Year: 30-APR-15

2шт.
