Запчасти Case 221F (10.414.AC[03]) - VAR - 734506 - FAN GUARD, AIR CONDITIONING (10) - ENGINE

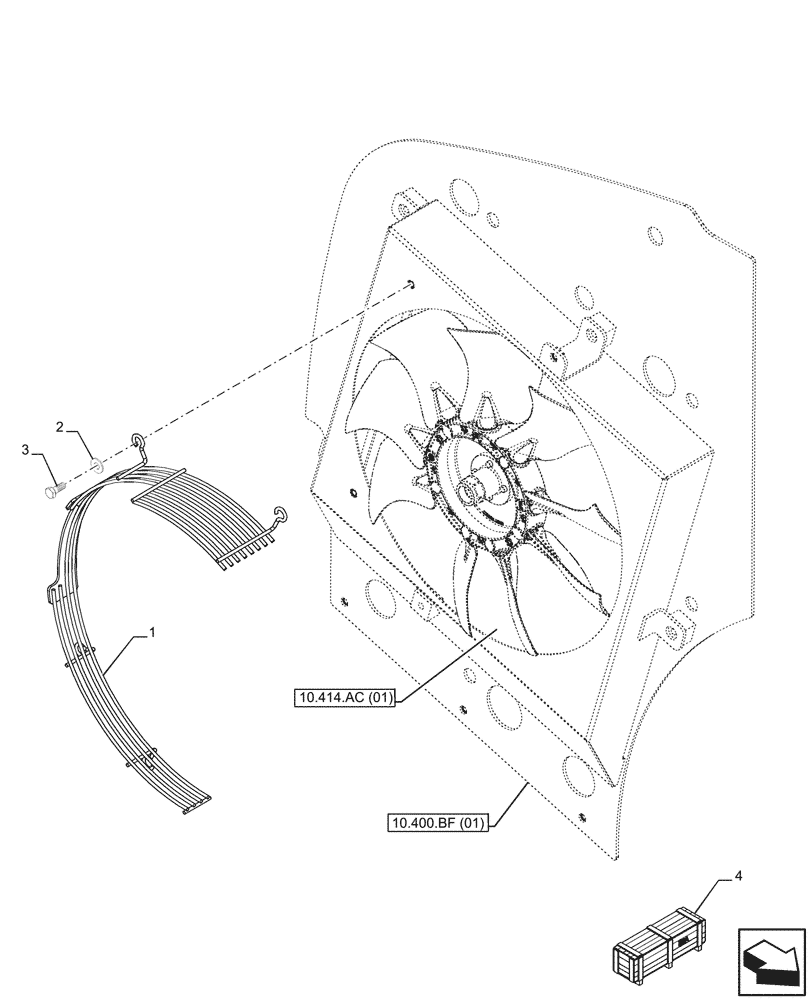

Схема запчастей Case 221F - (10.414.AC[03]) - VAR - 734506 - FAN GUARD, AIR CONDITIONING (10) - ENGINE
1
10.400.bf (01)
3
4
2
10.414.ac (01)

Артикул

Название

Примечание

Количество

1

47635614

GUARD

Fan, Serial Range: -NFHP00131

1шт.

1

47775590

GUARD

Fan, Start Serial: NFHP00132

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

4

47731630

KIT

Air Conditioner and Heater, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 6
