Запчасти Case 221F (10.216.BA[01B]) - FUEL TANK, LINES - BEGIN DATE 01 MARCH 2017 (10) - ENGINE

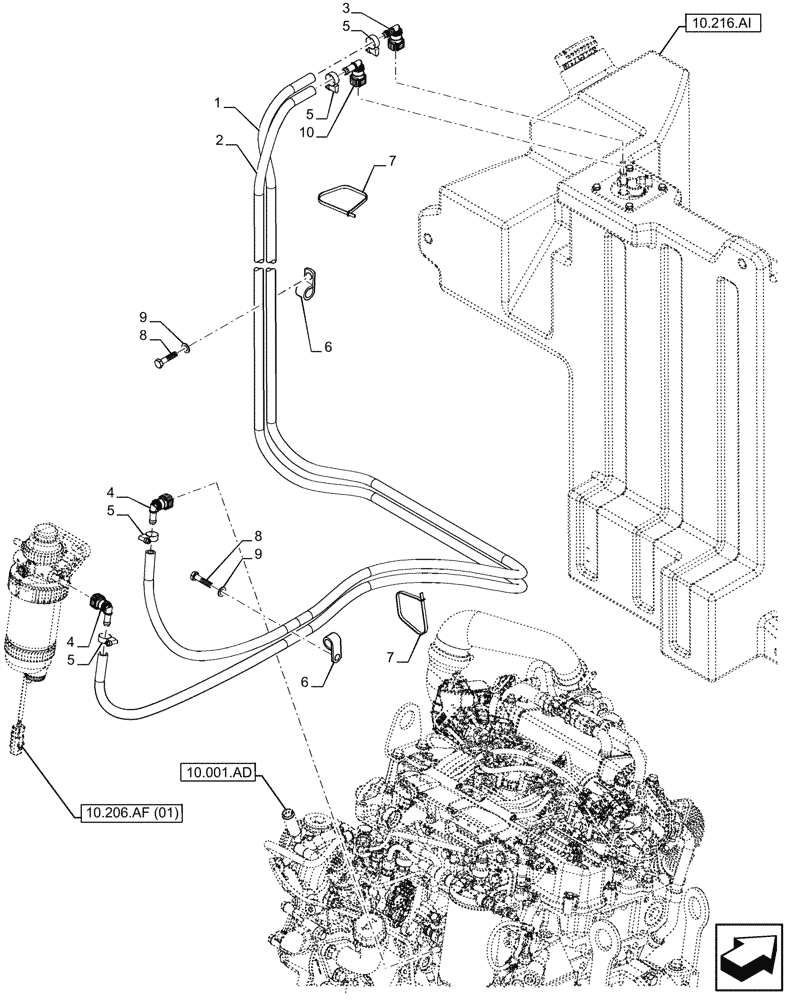

Схема запчастей Case 221F - (10.216.BA[01B]) - FUEL TANK, LINES - BEGIN DATE 01 MARCH 2017 (10) - ENGINE
5
9
10.216.ai
3
10.206.af (01)
6
8
10
5
7
6
4
5
4
10.001.ad
7
5
9
8
1
2

Артикул

Название

Примечание

Количество

1

47582489

HOSE

Delivery, 10mm ID x 2250mm

1шт.

2

47582487

HOSE

Return, 10mm ID x 2350mm

1шт.

3

84367132

FITTING,5/16'

1шт.

4

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

2шт.

5

773927

HOSE CLAMP

D12

4шт.

6

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

7

4982514

CABLE TIE,188mm L

2шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

1шт.

Выбрано товаров: 10
