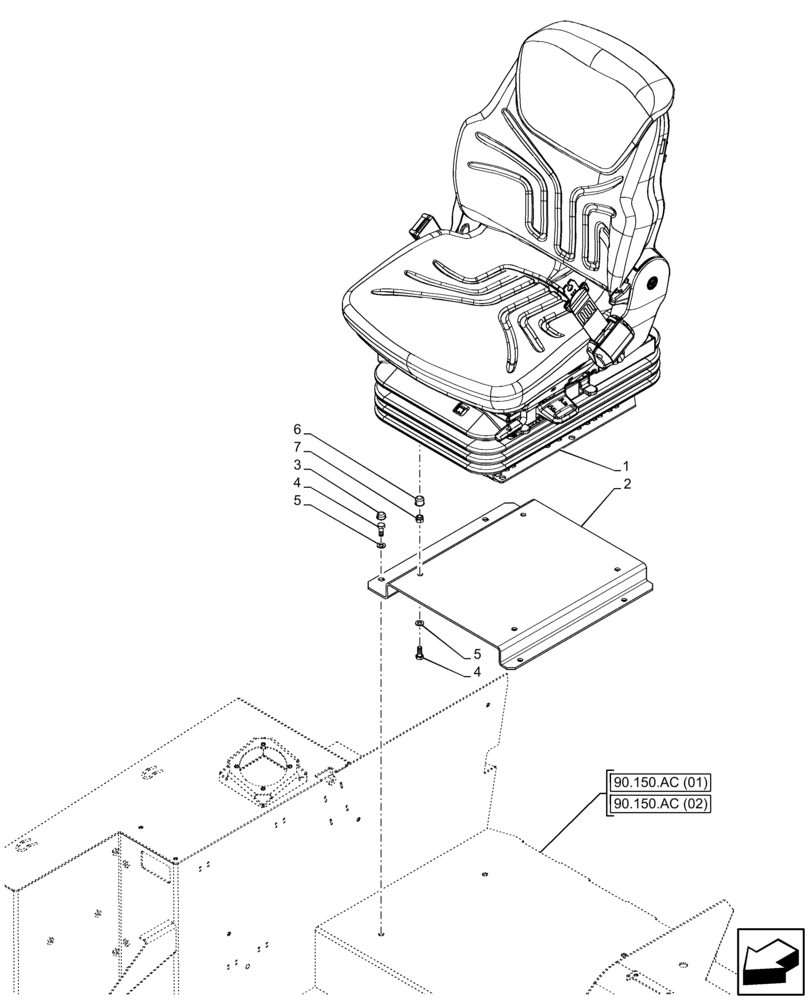

Запчасти Case 21F (90.124.AE) - VAR - 734590 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47639365

DRIVER SEAT

ASSY, Fabric Wheat, Serial Range: -NGHP00538

1шт.

1

47971865

DRIVER SEAT

ASSY, Fabric Apollo, Start Serial: NGHP00539

1шт.

2

47693749

PLATE

1шт.

3

15811487

CAP,13mm x 8.5mm

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

6

15811587

PROTECTION CAP,13mm x 13.5mm, Black

4шт.

7

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.
