Запчасти Case 21F (90.120.AC) - VAR - 734589 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

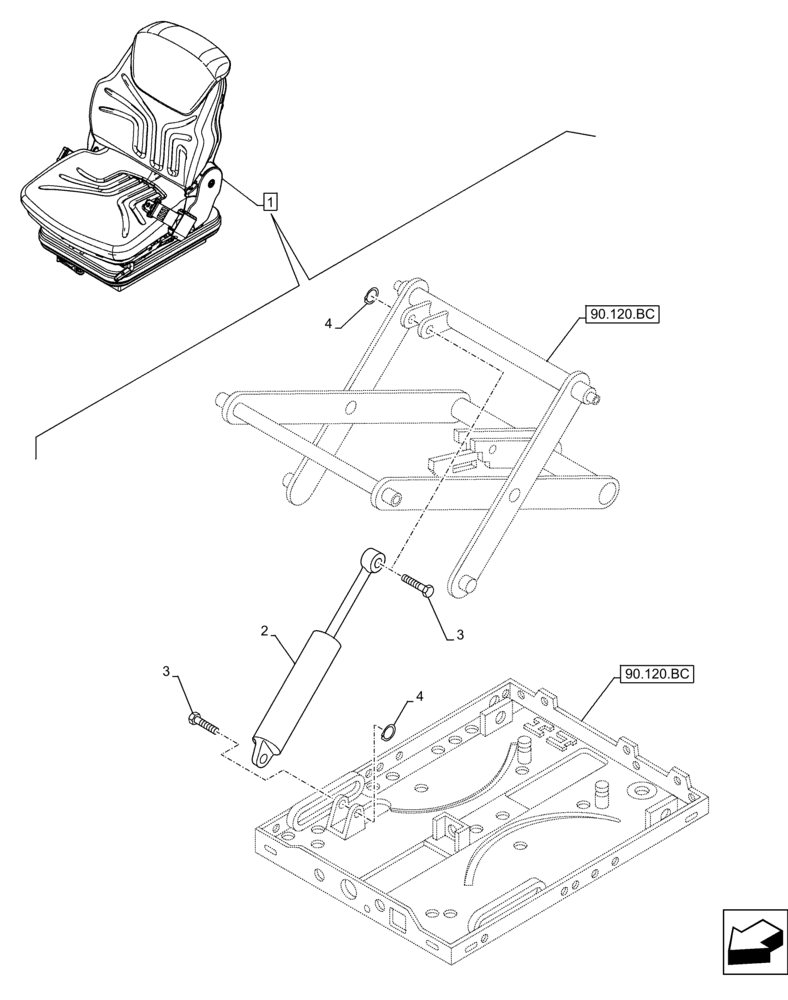

Схема запчастей Case 21F - (90.120.AC) - VAR - 734589 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
2
4
1
90.120.bc
4
90.120.bc

Артикул

Название

Примечание

Количество

1

47639359

DRIVER SEAT

ASSY, Fabric Wheat, Incl 2 - 4

1шт.

Mechanical Suspension

1шт.

See Driver Seat Components also in Figures, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.BA, 90.120.BC, 90.120.BH, 90.151.AD (01)

1шт.

2

9966146

SHOCK ABSORBER

1шт.

3

9959588

BOLT,M8 x 22mm

2шт.

4

9972178

CIRCLIP,M5

2шт.

Выбрано товаров: 6
