Запчасти Case 21F (35.723.AA[02]) - BUCKET CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

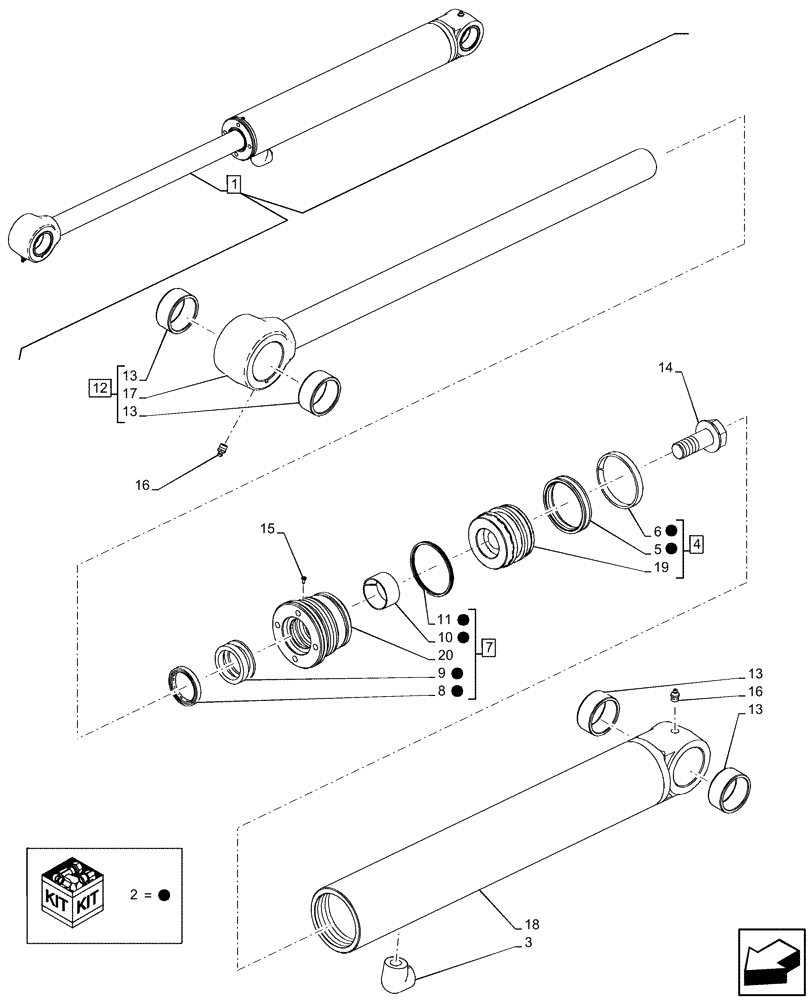

Схема запчастей Case 21F - (35.723.AA[02]) - BUCKET CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
18
14
9
8
1
13
2
13
19
2
16
3
2
2
2
13
20
16
2
6
13
5
15
11
2
4
10
2
17
7

Артикул

Название

Примечание

Количество

1

47448259

HYDRAULIC CYLINDER

ASSY, Incl 2 - 20

1шт.

2

47453237

KIT

Incl 5, 6, 8 - 11

1шт.

3

D27793

FITTING,7/8" - 14 ORB x 22.4mm ID, 90 Degree

1шт.

4

47453204

PISTON

ASSY, Incl 5, 6, 19

1шт.

5

87715782

SEAL,82.6mm OD

1шт.

6

S109445

RING,82.55mm OD, Ext

1шт.

7

47453234

PISTON

ASSY, Incl 8 - 11, 20

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

9

1542875C1

SEAL KIT,44.4mm Rod

1шт.

10

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

11

84323047

SEAL

1шт.

12

47453216

ROD

ASSY, Incl 13 (Qty 2), 17

1шт.

13

84289063

BUSHING

4шт.

14

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 4

1шт.

20

84208516

GLAND

Gland, Incl in 7

1шт.

Выбрано товаров: 20
