Запчасти Case 21F (35.701.CB[02]) - ARM, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

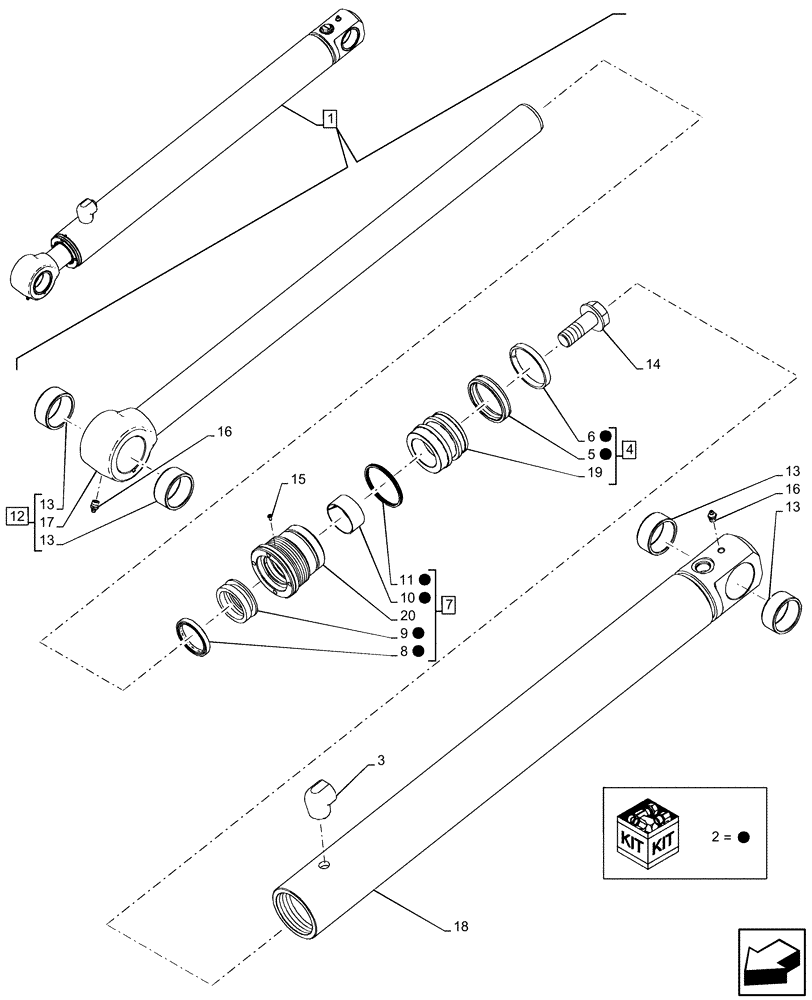

Схема запчастей Case 21F - (35.701.CB[02]) - ARM, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
10
2
16
15
6
2
13
19
2
8
3
11
13
13
4
9
20
17
14
1
13
12
18
2
2
2
2
7
5
16
2

Артикул

Название

Примечание

Количество

1

47448229

HYDRAULIC CYLINDER

ASSY, Incl 2 - 20

1шт.

2

84318585

SEAL KIT

Incl 5, 6, 8 - 11

1шт.

3

D27793

FITTING,7/8" - 14 ORB x 22.4mm ID, 90 Degree

1шт.

4

84318587

PISTON

ASSY, Incl 5, 6, 19

1шт.

5

87715781

SEAL,63.78mm ID x 76.2mm OD

1шт.

6

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

7

84318589

GLAND

ASSY, Incl 8 - 11, 20

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

9

1542876C1

SEAL KIT,50.8mm Rod

1шт.

10

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

11

84323046

SEAL,3 Bore Dia

1шт.

12

47452565

ROD

ASSY, Incl 13, 17

1шт.

13

84289063

BUSHING

4шт.

14

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Gland, Incl in 7

1шт.

Выбрано товаров: 20
