Запчасти Case 21F (35.600.AF[04]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE (35) - HYDRAULIC SYSTEMS

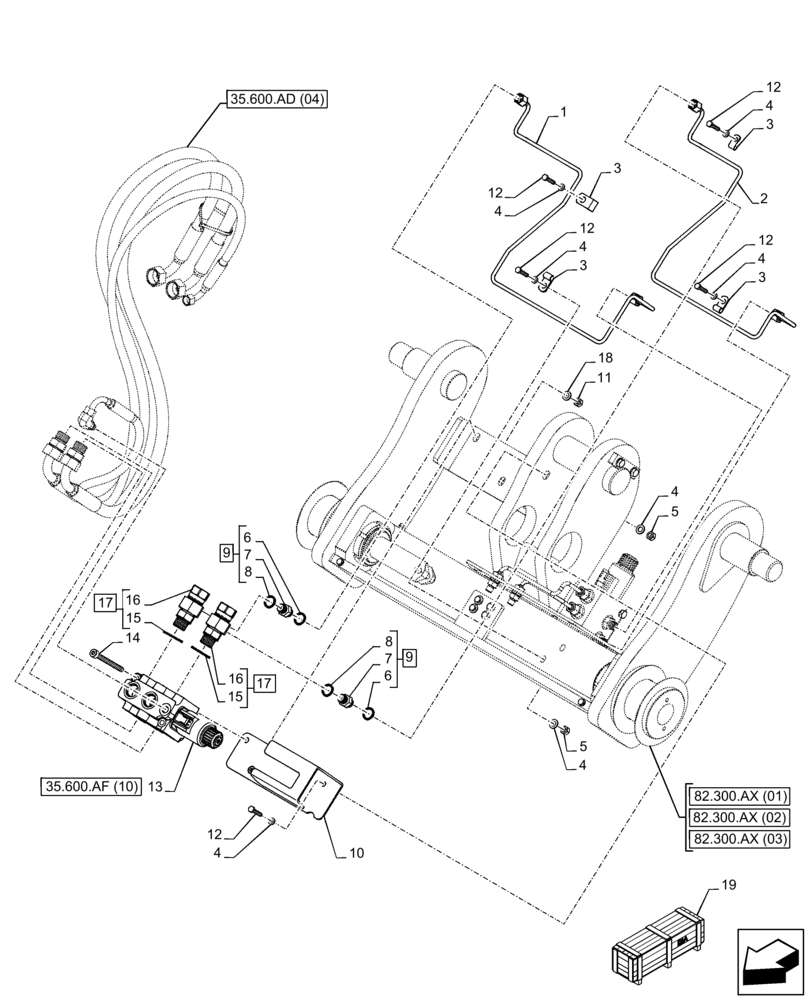

Схема запчастей Case 21F - (35.600.AF[04]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE (35) - HYDRAULIC SYSTEMS
4
12
4
82.300.ax (01)
4
16
1
17
18
35.600.ad (04)
4
12
9
17
35.600.af (10)
16
6
82.300.ax (03)
6
7
15
13
8
4
9
5
4
2
12
12
3
5
3
19
3
3
8
7
15
14
12
4
10
11
82.300.ax (02)

Артикул

Название

Примечание

Количество

1

47636355

HYD TUBE

Quick Coupler Feed Line Pipe, Serial Range: -NFHP00451

1шт.

1

47744855

HYDRAULIC HOSE

Quick Coupler Feed Line Pipe, Start Serial: NFHP00452

1шт.

2

47636356

HYD TUBE

Quick Coupler Feed Line Pipe, Serial Range: -NFHP00451

1шт.

2

47744855

HYDRAULIC HOSE

Quick Coupler Feed Line Pipe, Start Serial: NFHP00452

1шт.

3

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

, Serial Range: -NFHP00451

4шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -NFHP00451

8шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

, Serial Range: -NFHP00451

4шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

2шт.

10

47570729

PLATE

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

2шт.

12

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

, Serial Range: -NFHP00451

5шт.

13

47639119

VALVE

Flow Diverter

1шт.

14

14307134

SCREW,M8 x 1.25 x 90mm, Cl 10.9

2шт.

15

241922

WASHER

2шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

2шт.

17

47635576

FITTING

ASSY, Incl 15 (Qty 1), 16 (Qty 1)

2шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

19

47700334

CONSTRUCTION DIA

Hydraulic System 4th Function, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
