Запчасти Case 21F (35.359.AG[04]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

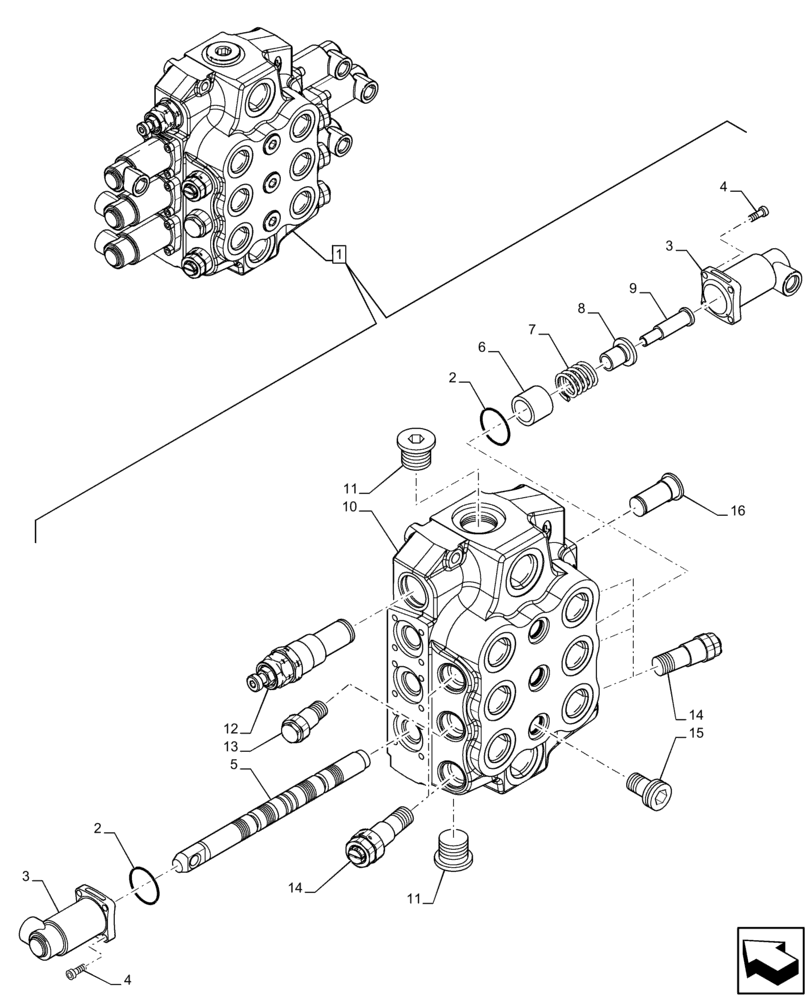

Схема запчастей Case 21F - (35.359.AG[04]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
3
1
13
3
15
9
12
4
16
6
7
11
2
11
4
14
14
5
8
10

Артикул

Название

Примечание

Количество

1

47642501

CONTROL VALVE

Directional Control, ASSY, Incl 2 - 16

1шт.

See Valve Directional Control also in Figure 35.359.AG (02), (03), (05)

1шт.

2

47629858

KIT

1шт.

Include also Gaskets in Figure 35.359.AG (02), (03), (05)

1шт.

3

47629886

COVER

6шт.

4

864-5050

HEX SOC SCREW,M5 x 50mm, Cl 8.8

8шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

47751685

PLUG

2шт.

12

47629862

VALVE PRESSURE RELIE

1шт.

13

47629873

VALVE

1шт.

14

47629866

VALVE

5шт.

15

47629871

CHECK VALVE

3шт.

16

47751691

PLUG

1шт.

Выбрано товаров: 18
