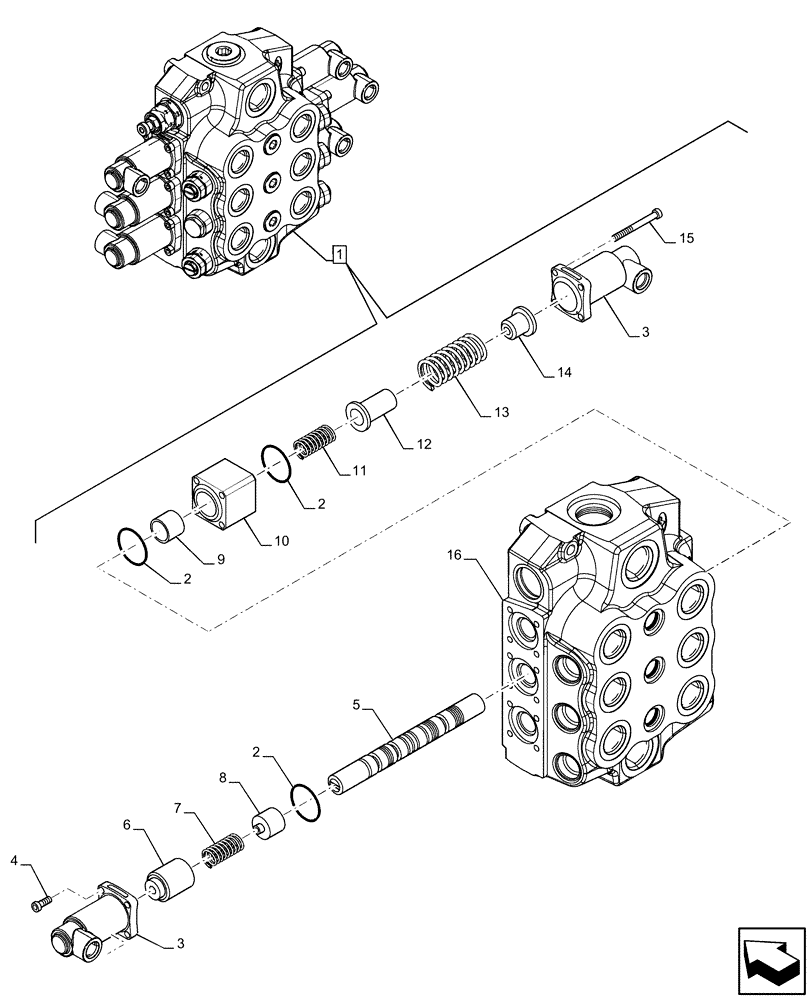

Запчасти Case 21F (35.359.AG[03]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47642501

CONTROL VALVE

Directional Control, ASSY, Incl 2 - 16

1шт.

See Valve Directional Control also in Figure 35.359.AG (02), (04), (05)

1шт.

2

47629858

KIT

1шт.

Include also Gaskets in Figure 35.359.AG (02), (04), (05)

1шт.

3

47629886

COVER

6шт.

4

864-5050

HEX SOC SCREW,M5 x 50mm, Cl 8.8

4шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, incl in 1

1шт.

15

47517706

SCREW,Hex Soc, M5 x 16, Class 8.8

4шт.

16

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
