Запчасти Case 21F (35.220.AG[01A]) - AUXILIARY HYDRAULIC, PUMP, TANK, LINE - BEGIN DATE 8 APRIL 2015 (35) - HYDRAULIC SYSTEMS

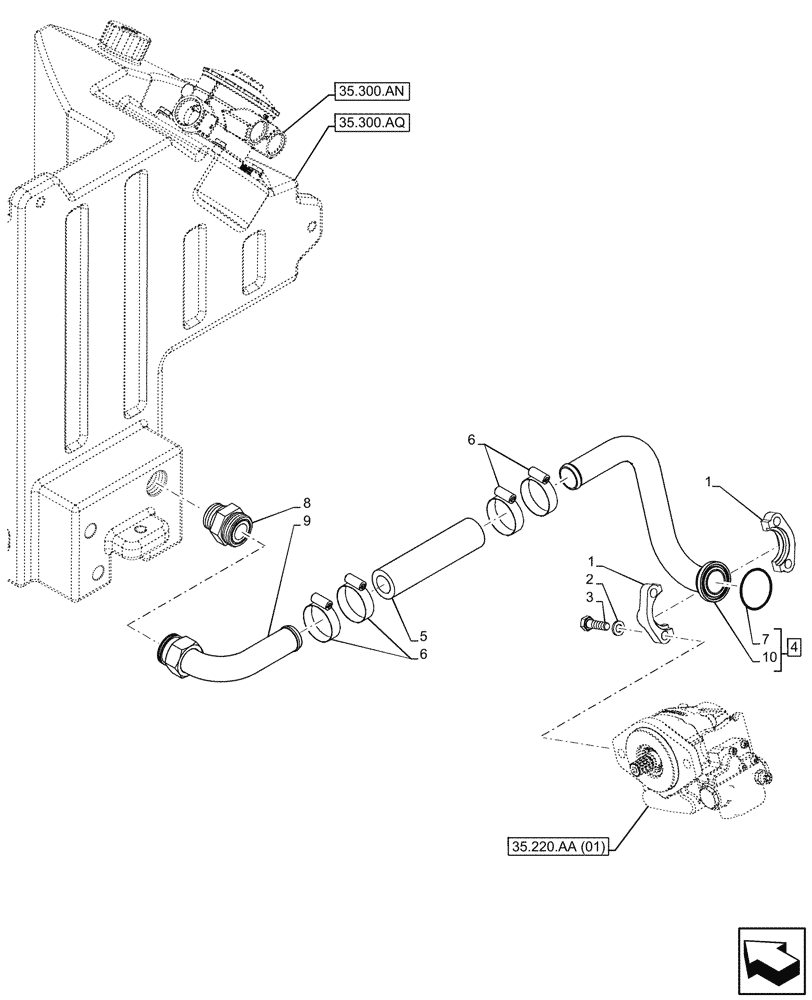

Схема запчастей Case 21F - (35.220.AG[01A]) - AUXILIARY HYDRAULIC, PUMP, TANK, LINE - BEGIN DATE 8 APRIL 2015 (35) - HYDRAULIC SYSTEMS
35.300.aq
10
1
7
5
8
9
2
1
3
6
4
6
35.300.an
35.220.aa (01)

Артикул

Название

Примечание

Количество

1

70921118

CLAMP,Half

2шт.

2

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

3

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

4

47725624

HYD TUBE

ASSY, Incl 7, 10

1шт.

5

47725634

HYDRAULIC HOSE

Suction Oil Tank

1шт.

6

79083846

HOSE CLAMP,M40-60

, Serial Range: -NFHP00155

4шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

, Start Serial: NFHP00156

4шт.

7

87632735

O-RING,1.859" ID x 2.137" OD x 0.139"

1шт.

8

201-137

HYD CONNECTOR,2"-12 ORFS x 1 8/8"-12 ORB

1шт.

9

47725631

HYD TUBE

1шт.

10

NSS

NOT SOLD SEPARAT

Hydraulic Tube, Incl in 4

1шт.

Выбрано товаров: 11
