Запчасти Case 21F (29.204.AB[01]) - HYDROSTATIC MOTOR, PUMP, COOLER, LINE (29) - HYDROSTATIC DRIVE

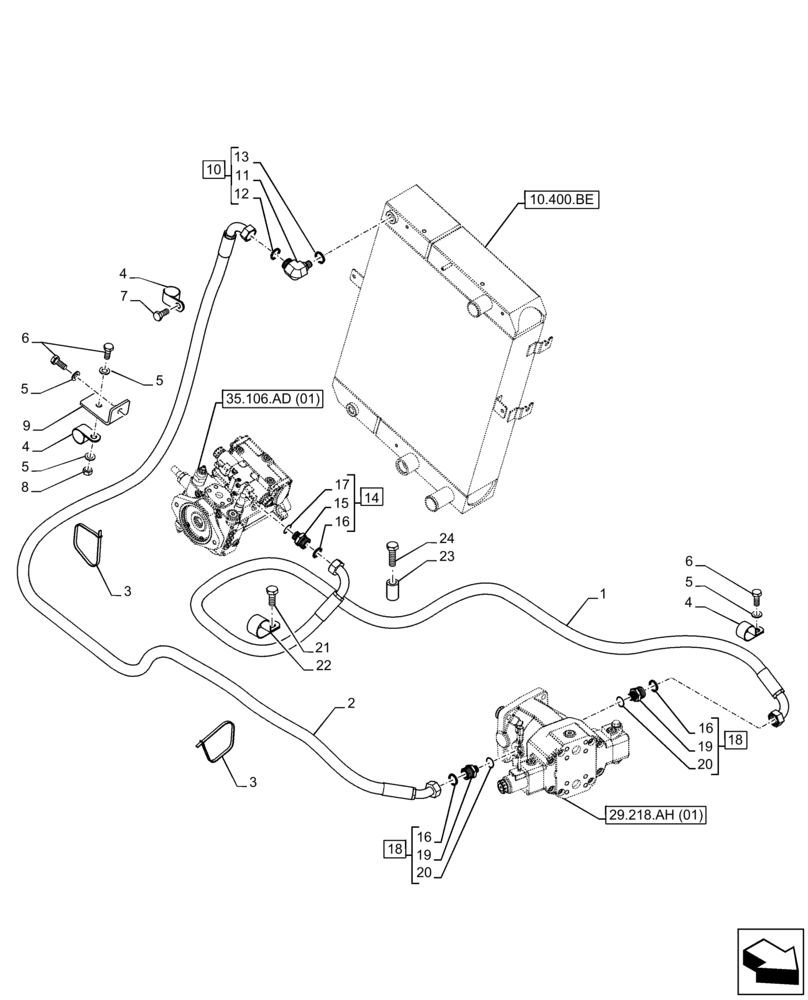

Схема запчастей Case 21F - (29.204.AB[01]) - HYDROSTATIC MOTOR, PUMP, COOLER, LINE (29) - HYDROSTATIC DRIVE
6
18
5
11
16
23
7
4
10
16
24
4
12
21
18
5
13
20
14
20
3
1
6
9
8
2
10.400.be
3
29.218.ah (01)
22
35.106.ad (01)
15
17
19
19
5
4
5
16

Артикул

Название

Примечание

Количество

1

47507554

HYDRAULIC HOSE

Main Pump to Hydrostatic Motor

1шт.

2

47611054

HYDRAULIC HOSE

Radiator to Hydrostatic Motor

1шт.

3

4982514

CABLE TIE,188mm L

3шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

6шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

6

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

5шт.

7

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

1шт.

9

47502493

BRACKET

1шт.

10

47468131

90 ELBOW

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

ASSY, Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

17

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

18

5185526

HYD CONNECTOR

ASSY, Incl 16 (Qty 1), 19 (Qty 1), 21 (Qty 1)

2шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

2шт.

20

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

22

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

24

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

Выбрано товаров: 24
