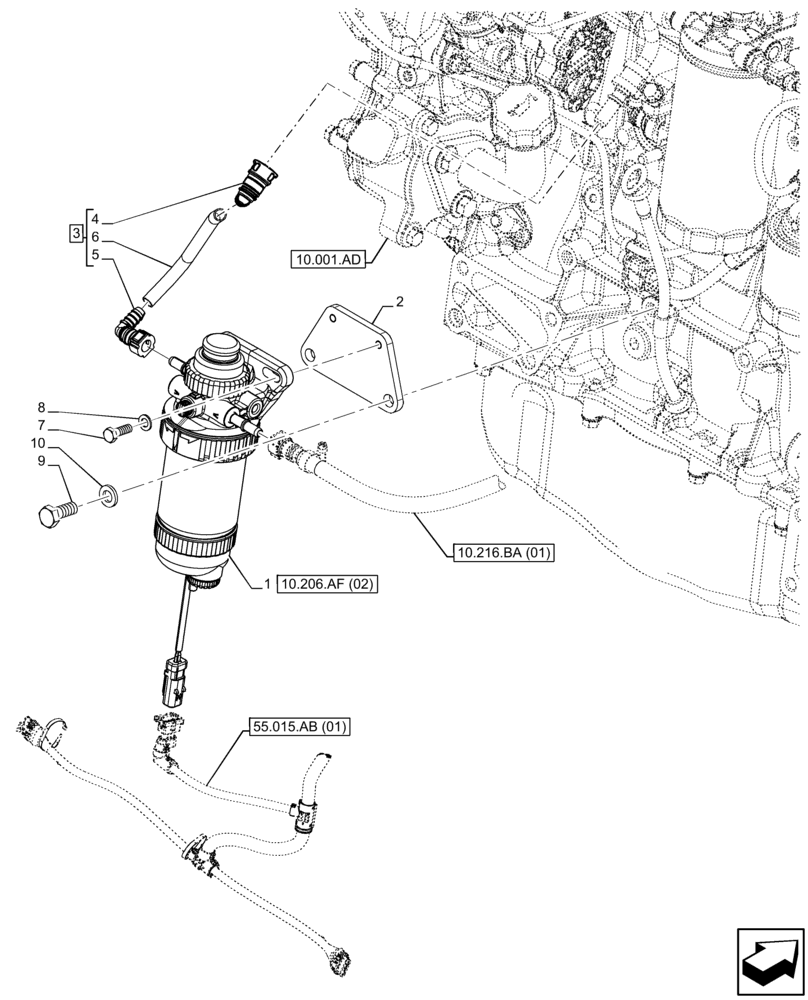

Запчасти Case 21F (10.206.AF[01]) - FUEL FILTER/WATER SEPARATOR (10) - ENGINE

1

84392298

FILTER

ASSY

1шт.

2

47432274

PLATE

1шт.

3

84391629

RIGID TUBE

Fuel, ASSY, Incl 4 - 6, Filter to Engine

1шт.

4

84375791

FITTING,11.8mm ID, 10mm OD

1шт.

5

84416493

HOSE FITTING,9.5mm OD, 10mm ID, 90 Degree

1шт.

6

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

7

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

10

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.
