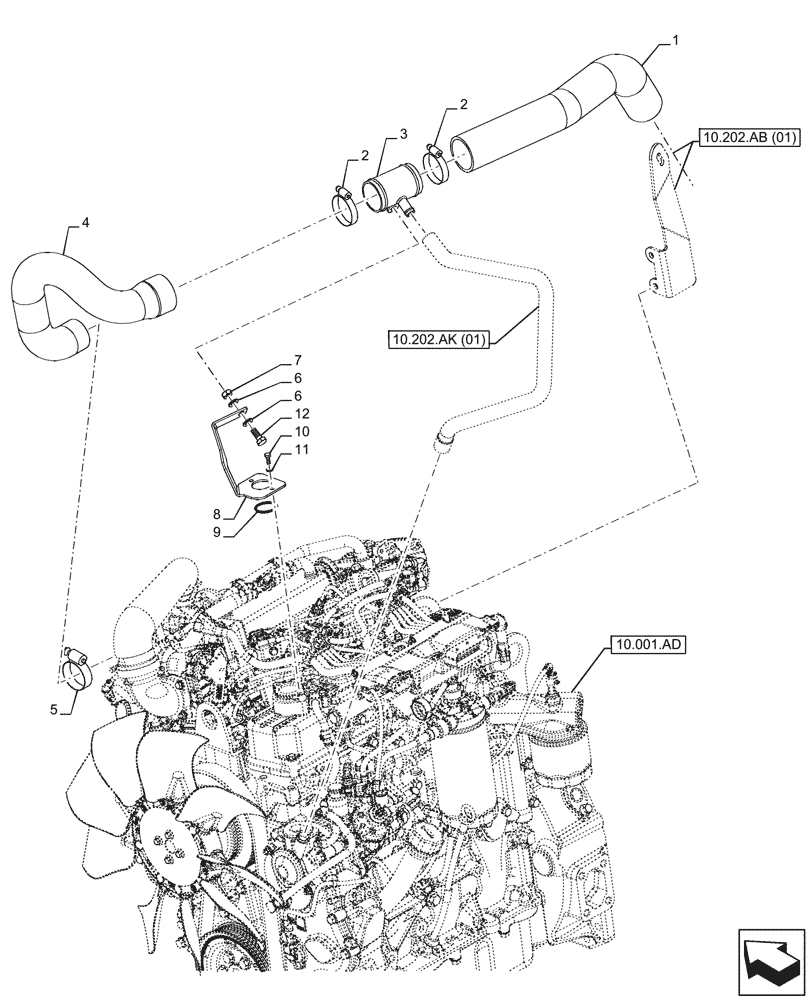

Запчасти Case 21F (10.202.AD[02]) - AIR CLEANER, LINES (10) - ENGINE

1

47516203

SLEEVE

Intake Air Cleaner

1шт.

2

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

3

47716867

AIR INTAKE TUBE

Intake Air, Fitting

1шт.

4

47430065

HOSE

Intake Air, from Coupler To Turbocharger, Serial Range: -NFHP00566

1шт.

4

47823397

INTAKE AIR HOSE

Intake Air, from Coupler To Turbocharger, Start Serial: NFHP00567

1шт.

5

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

87564742

NUT

M10

1шт.

8

47580163

BRACKET

1шт.

9

86625096

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

10

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.
