Запчасти Case 21F (90.156.AQ) - VAR - 734631, 734632 - CAB, WINDOW, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

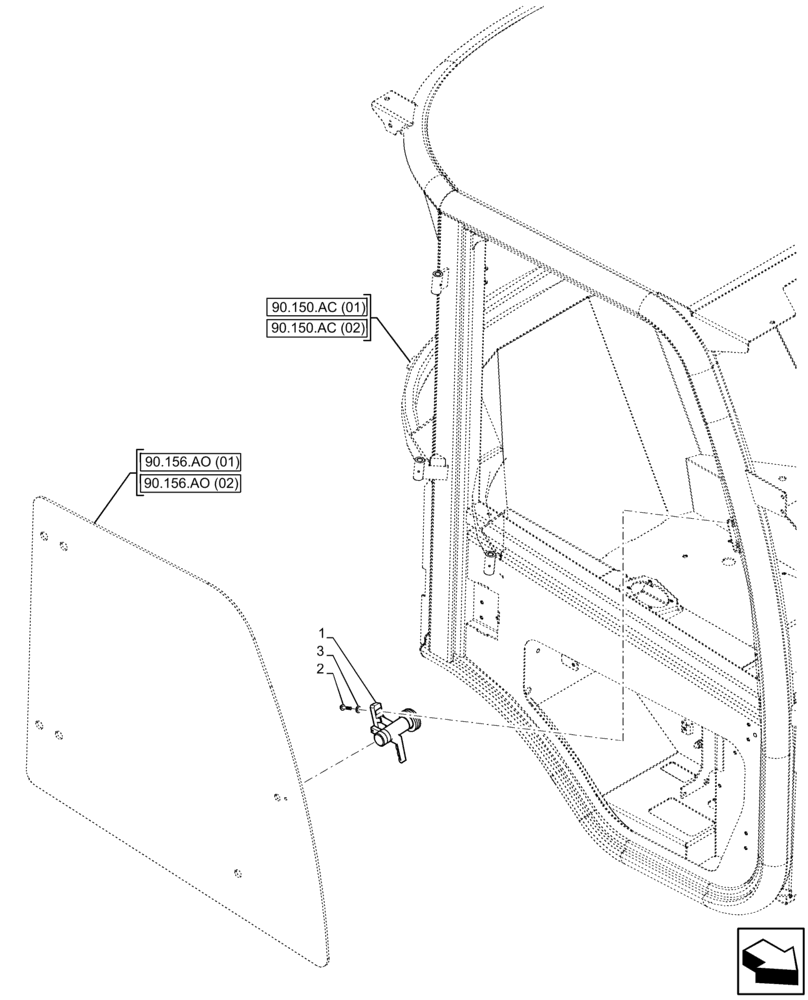

Схема запчастей Case 21F - (90.156.AQ) - VAR - 734631, 734632 - CAB, WINDOW, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.156.ao (01)
1
90.156.ao (02)
3
2
90.150.ac (01)
90.150.ac (02)

Артикул

Название

Примечание

Количество

1

47512503

LOCK

Side Window

1шт.

2

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

3

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 3
