(89.800.AA[36]) - VAR - 734643 - ATTACHMENT, BUCKET, 4 IN 1 (0.7M³ X 1900MM)

Запчасти Case 21F (89.800.AA[36]) - VAR - 734643 - ATTACHMENT, BUCKET, 4 IN 1 (0.7M³ X 1900MM) (89) - TOOLS

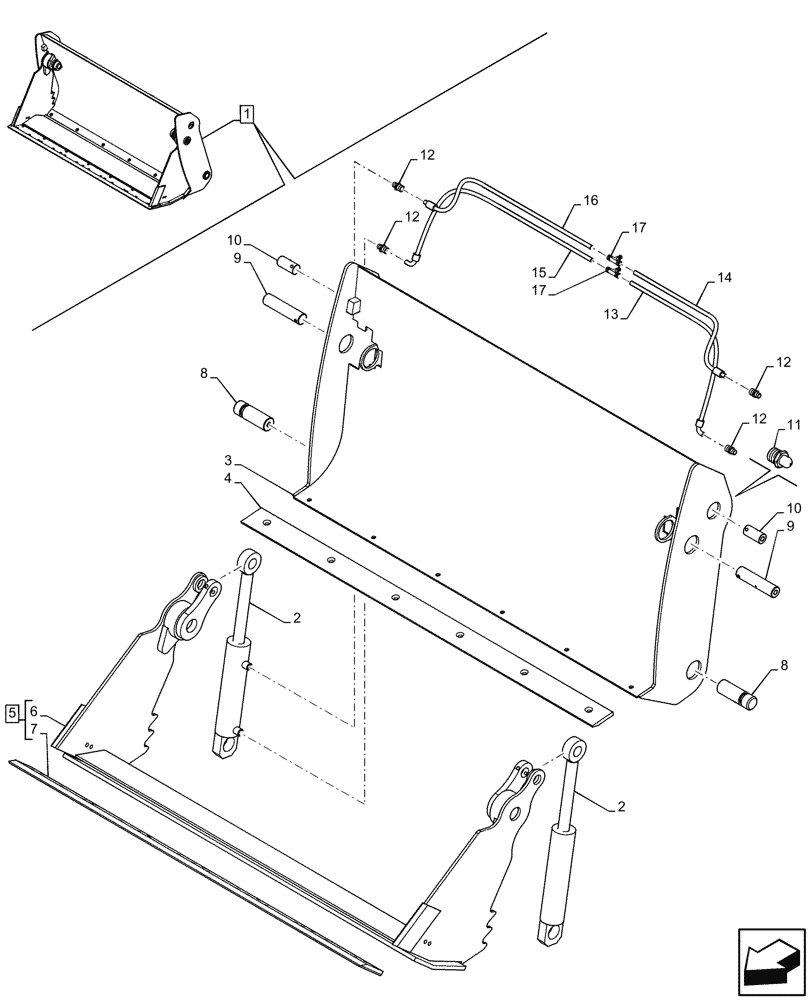

Схема запчастей Case 21F - (89.800.AA[36]) - VAR - 734643 - ATTACHMENT, BUCKET, 4 IN 1 (0.7M³ X 1900MM) (89) - TOOLS
10
1
8
2
9
17
10
12
12
14
16
13
11
6
12
17
9
4
3
5
2
7
15
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47680865

4 IN 1 BUCKET

0.7M3x1900mm for SSL Coupler, ASSY, Incl 2 - 19

1шт.

2

47645161

BUCKET CYLINDER

2шт.

3

NSS

NOT SOLD SEPARAT

4 IN 1 Bucket, Incl in 2

1шт.

4

47647244

DOZER BLADE

1шт.

5

47647174

4 IN 1 BUCKET

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

4 IN 1 Bucket, Incl in 5

1шт.

7

47606744

CUTTING EDGE

1900mm, 23 Holes for Fixing Screws

1шт.

8

47645924

PIN

2шт.

9

47645038

PIN

2шт.

10

47645157

PIN

2шт.

11

47648301

LUBE NIPPLE

1шт.

12

47645168

NIPPLE

4шт.

13

47649062

HYD TUBE

890mm

1шт.

14

47649060

HYD TUBE

750mm

1шт.

15

47649059

HYD TUBE

1150mm

1шт.

16

47649057

HYD TUBE

1000mm

1шт.

17

47645174

FITTING

2шт.
