(82.300.AX[03]) - VAR - 734517 - QUICK COUPLER

Запчасти Case 21F (82.300.AX[03]) - VAR - 734517 - QUICK COUPLER (82) - FRONT LOADER & BUCKET

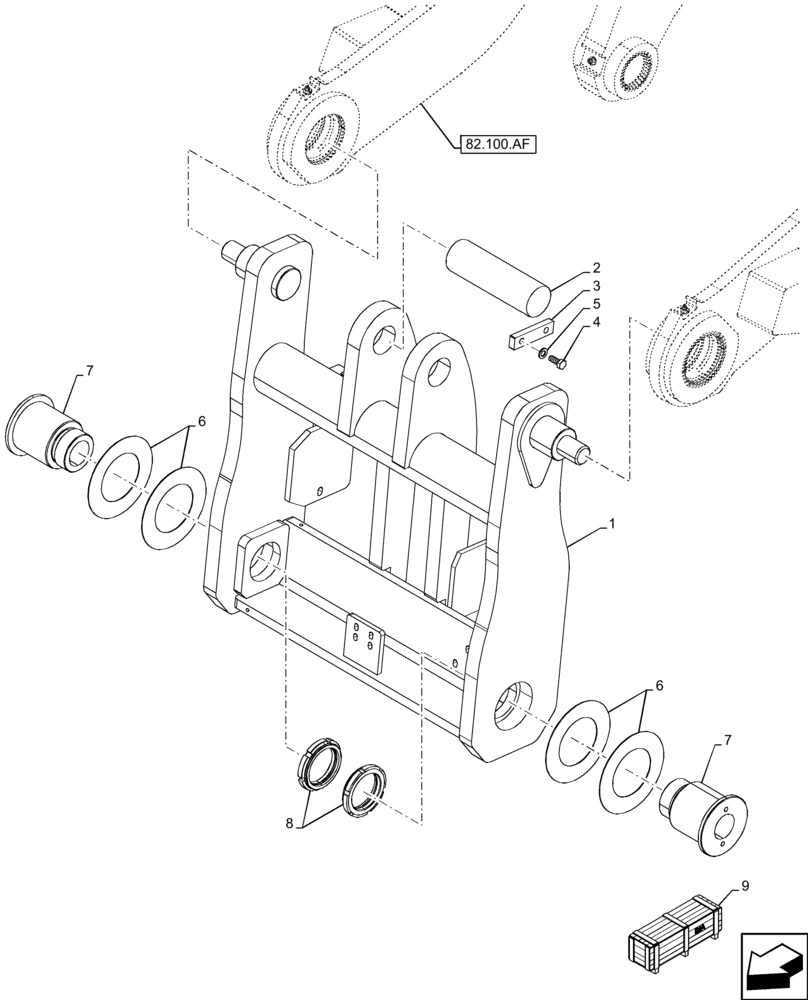

Схема запчастей Case 21F - (82.300.AX[03]) - VAR - 734517 - QUICK COUPLER (82) - FRONT LOADER & BUCKET
4
1
3
7
7
9
6
6
5
82.100.af
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47637233

QUICK-HITCH

, Years: -18-DEC-15

1шт.

1

47823516

QUICK-HITCH

, Start Year: 19-DEC-15

1шт.

2

47394586

PIN

1шт.

3

47394585

PLATE

1шт.

4

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

47531436

SHIM

1.00mm Thk

4шт.

7

47665258

PIN

2шт.

8

47665132

BEARING LOCK NUT

2шт.

9

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
