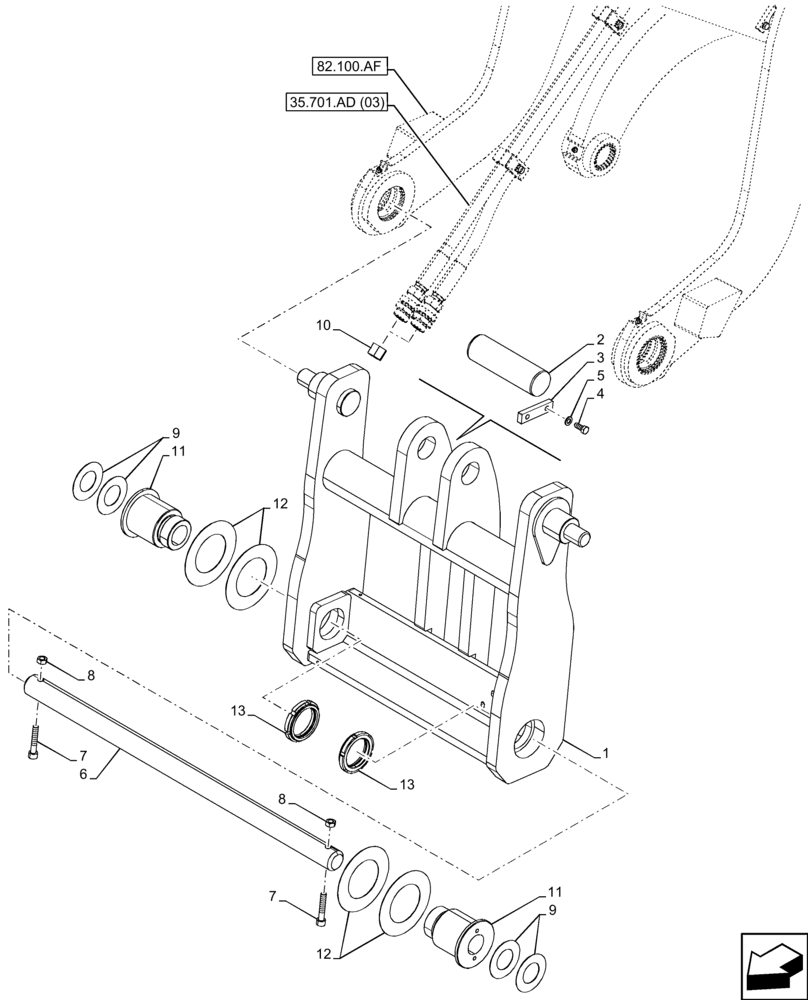

Запчасти Case 21F (82.300.AX[01]) - VAR - 734633 - QUICK COUPLER, MECHANICAL (82) - FRONT LOADER & BUCKET

1

47672155

HITCH

Mechanical TC, Years: -18-DEC-15

1шт.

1

47852125

HITCH

Mechanical TC, Start Year: 19-DEC-15

1шт.

2

47394586

PIN

1шт.

3

47394585

PLATE

1шт.

4

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

47672181

PIN

1шт.

7

14420731

HEX SOC SCREW,M10 x 1.5 x 55mm, Cl 10.9

2шт.

8

86500689

NUT,M10 x 1.5, Cl 10

2шт.

9

47671315

SHIM

1.00mm Thk

4шт.

10

9840576

CAP,1" - 14 ORFS

2шт.

11

47665258

PIN

, Years: -31-JAN-16

2шт.

11

47876248

QUICK MALE COUPLING

, Start Year: 01-FEB-16

2шт.

12

47531436

SHIM

1.00mm Thk

4шт.

13

47665132

BEARING LOCK NUT

2шт.
