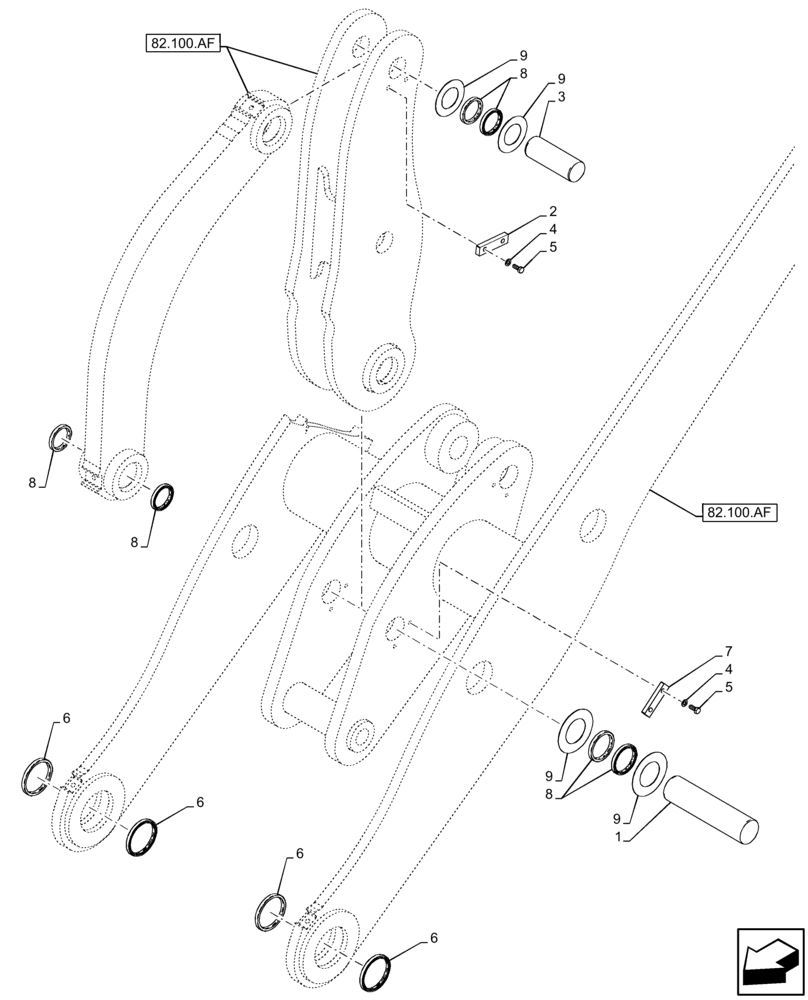

Запчасти Case 21F (82.100.BG[02]) - LOADER ARM, PIN, LINK (82) - FRONT LOADER & BUCKET

1

47432992

PIN

1шт.

2

47394585

PLATE

1шт.

3

47413532

PIN

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

6

D95148

WIPER SEAL

4шт.

7

47591041

PLATE

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

6шт.

9

47454330

SHIM

1.00mm Thk

4шт.
