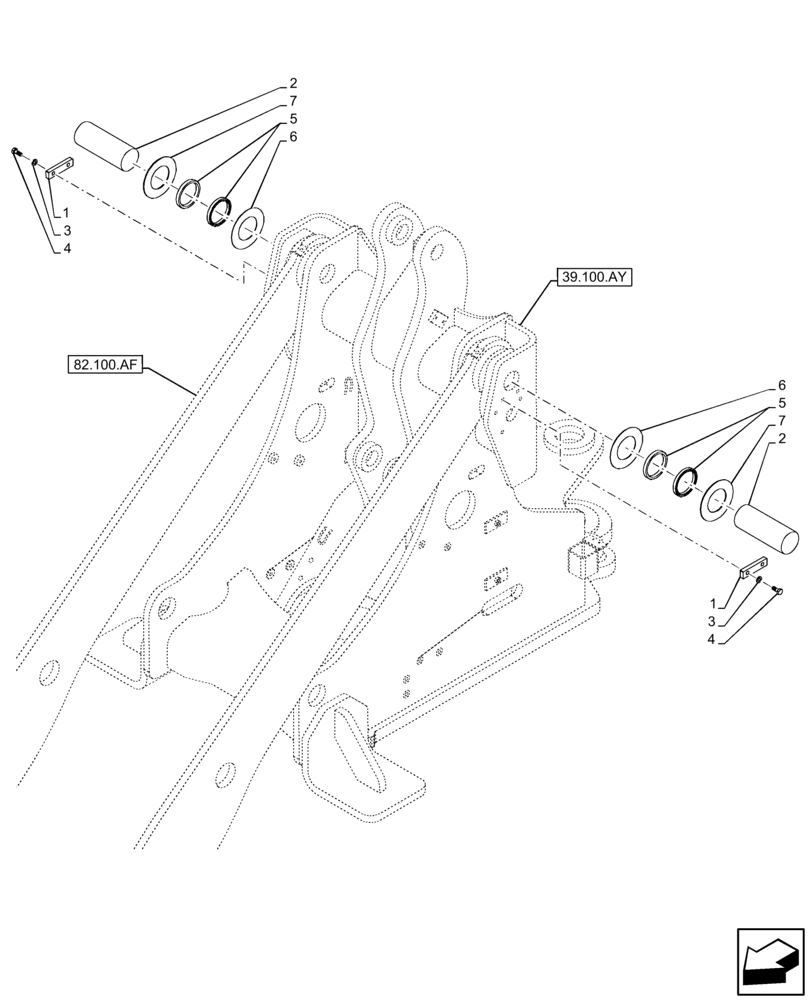

Запчасти Case 21F (82.100.BG[01]) - LOADER ARM, PIN, FRONT FRAME (82) - FRONT LOADER & BUCKET

1

47394585

PLATE

2шт.

2

47390796

PIN

2шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

4шт.

6

47454314

SHIM

1.00mm Thk

2шт.

7

47514502

SHIM

2.00mm Thk

2шт.
