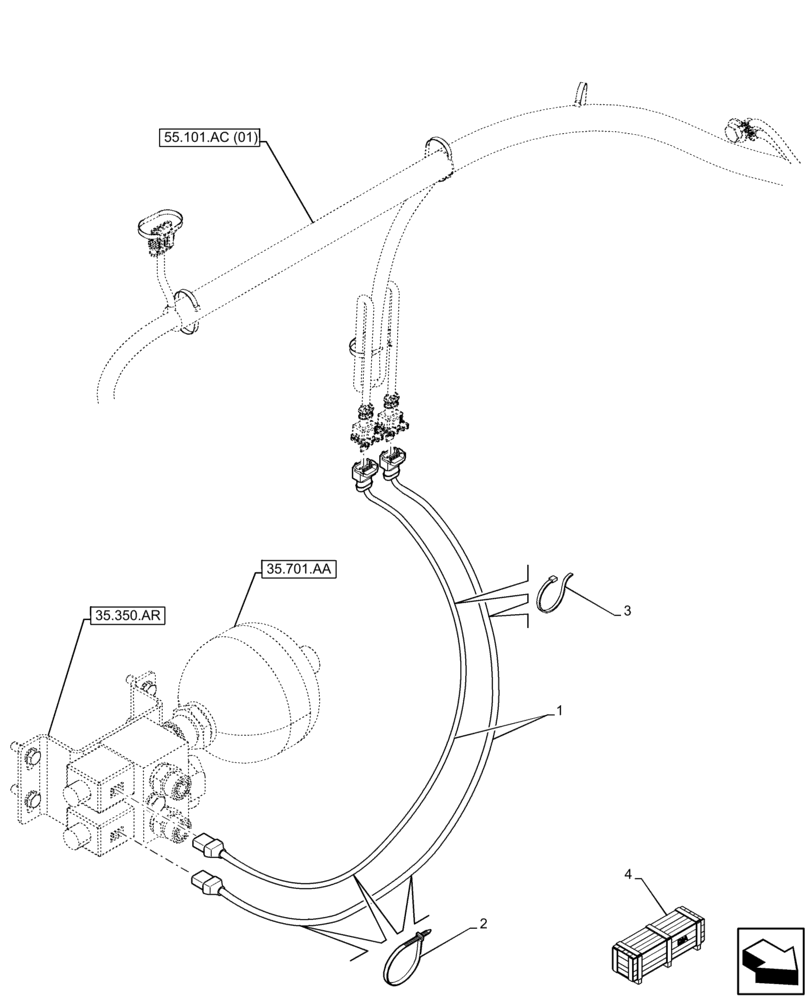

Запчасти Case 21F (55.526.AG) - VAR - 734520 - RIDE CONTROL HARNESS (55) - ELECTRICAL SYSTEMS

1

47743354

WIRE HARNESS

Ride Control

1шт.

2

435437A1

CABLE TIE,3/16" x 7 1/4"

6шт.

3

84250313

STRAP

3шт.

4

47700189

CONSTRUCTION DIA

Ride Control W50C - W60C, 21F - 121F TC, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

4

47700206

CONSTRUCTION DIA

Ride Control W50C - W60C, 21F - 121F Z - Bat, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

4

47700210

CONSTRUCTION DIA

Ride Control W70C - W80C, 221F - 321F Z - Bat, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
