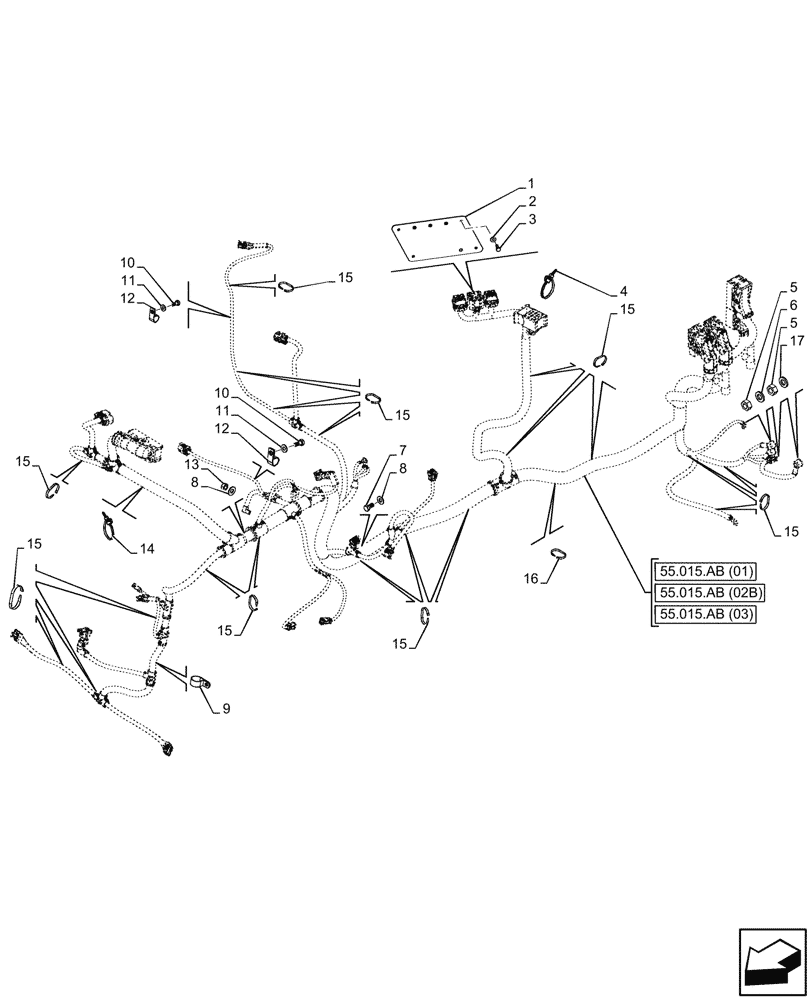

Запчасти Case 21F (55.015.AB[04B]) - HARNESS, ENGINE - BEGIN DATE 01 MARCH 2017 (55) - ELECTRICAL SYSTEMS

1

47864159

BRACKET

Engine Relays

1шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

84536921

CABLE TIE,203.2mm L

1шт.

5

9706755

NUT,M6, Cl 8

6шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

10

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

13

86500689

NUT,M10 x 1.5, Cl 10

1шт.

14

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

56шт.

16

82012869

CABLE TIE,300mm L, Nylon, Black

10шт.

17

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

1шт.
