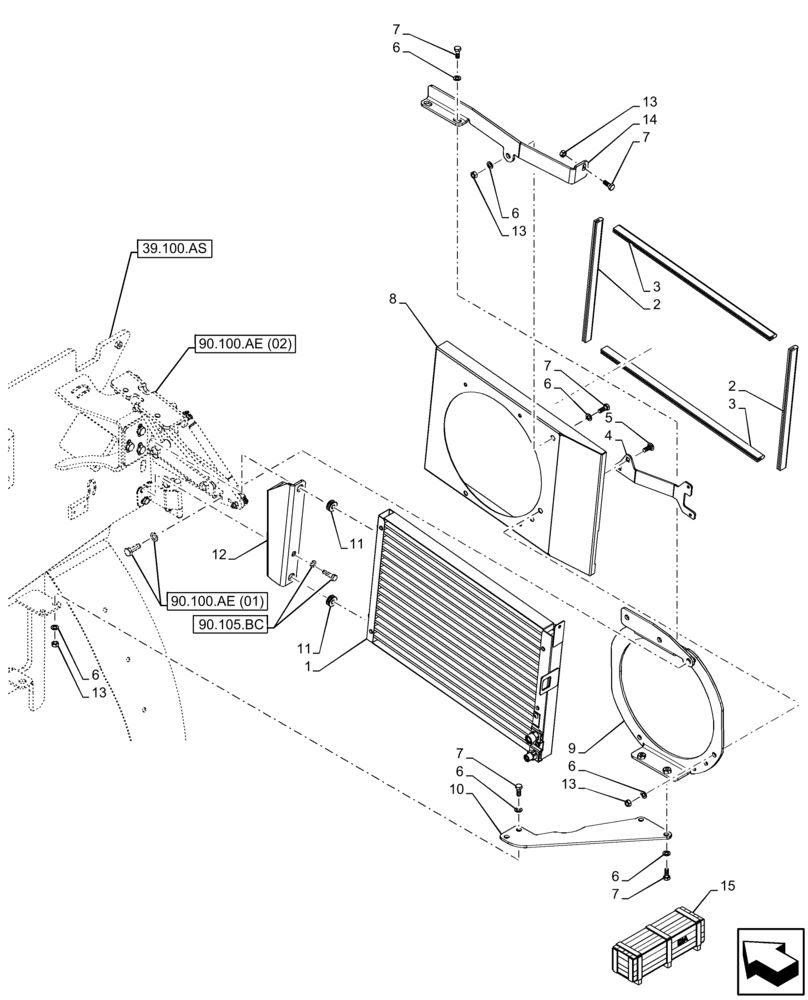

Запчасти Case 21F (50.200.AK) - VAR - 734506 - AIR CONDITIONER, CONDENSER (50) - CAB CLIMATE CONTROL

1

87542953

CONDENSER

1шт.

2

47644960

SEAL

2шт.

3

47644957

SEAL

2шт.

4

47620401

BRACKET

1шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

7

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

8шт.

8

47644839

SHROUD

1шт.

9

47620400

BRACKET

1шт.

10

47620367

BRACKET

1шт.

11

84338765

GROMMET,10mm ID x 18mm GRV ø x 24mm OD x 9.5mm Thk

2шт.

12

47612736

BRACKET

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

6шт.

14

47612737

BRACKET

1шт.

15

47731629

KIT

Air Conditioner and Heater W50C - W60C, 21F - 121F, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
