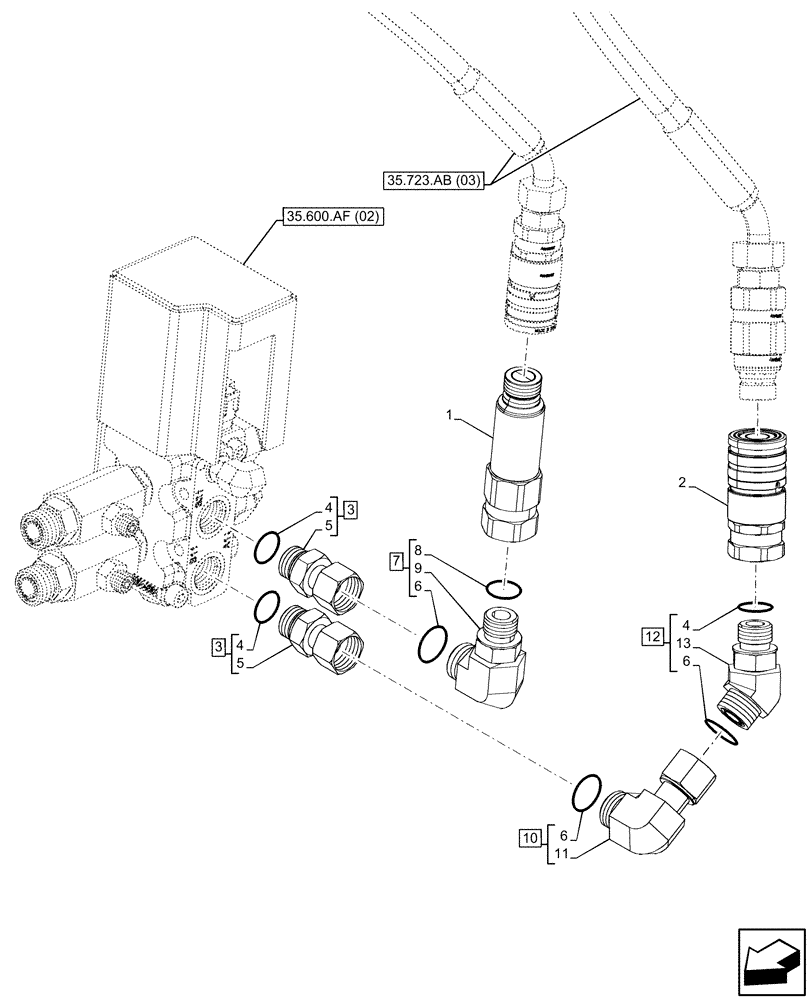

Запчасти Case 21F (35.734.AG[06]) - VAR - 732006, 734618, 734652 - HYDRAULIC LINE, COUPLING, JOINT (35) - HYDRAULIC SYSTEMS

1

47585262

QUICK MALE COUPLING

Iso 12.5-1/2

1шт.

2

47585260

COUPLING, QUICK, FEM

Iso 12.5-1

1шт.

3

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 6 (Qty 1), 8, 9

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

10

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

ASSY, Incl 6 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

87301491

45 ELBOW

ASSY, Incl 4 (Qty 1), 6 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.
