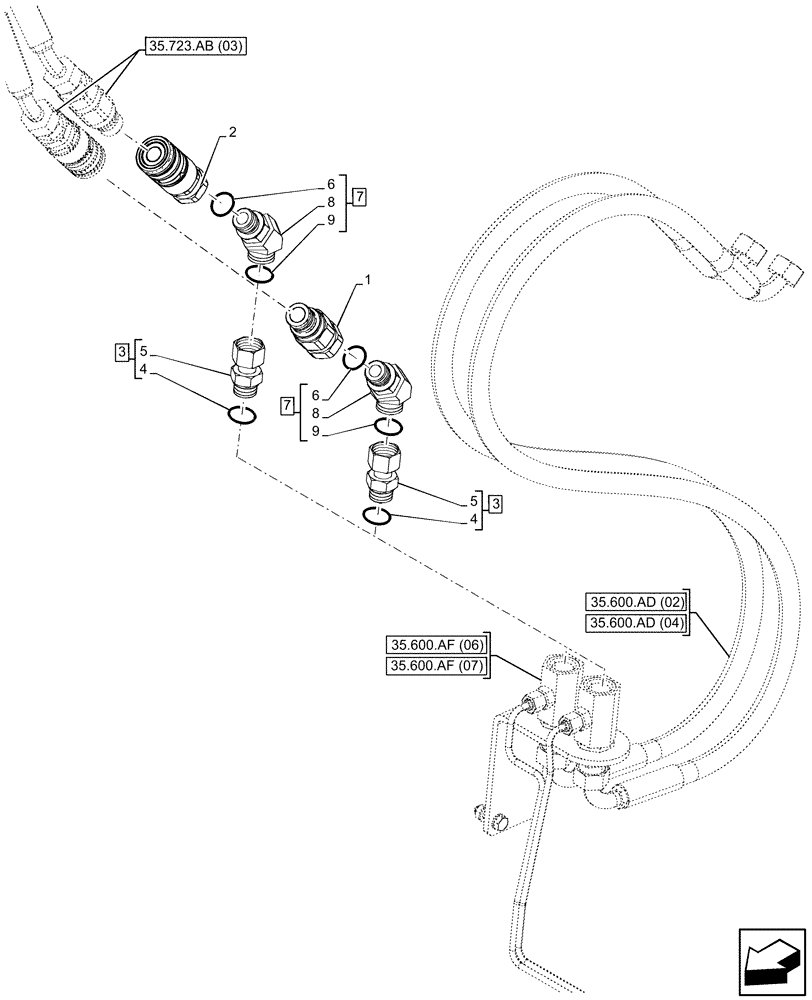

Запчасти Case 21F (35.734.AG[03]) - VAR - 734614 - HYDRAULIC LINE, COUPLING, JOINT (35) - HYDRAULIC SYSTEMS

1

47491384

QUICK MALE COUPLING

1шт.

2

47491364

COUPLING, QUICK, FEM

1шт.

3

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

7

87301491

45 ELBOW

ASSY, Incl 6 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

2шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
