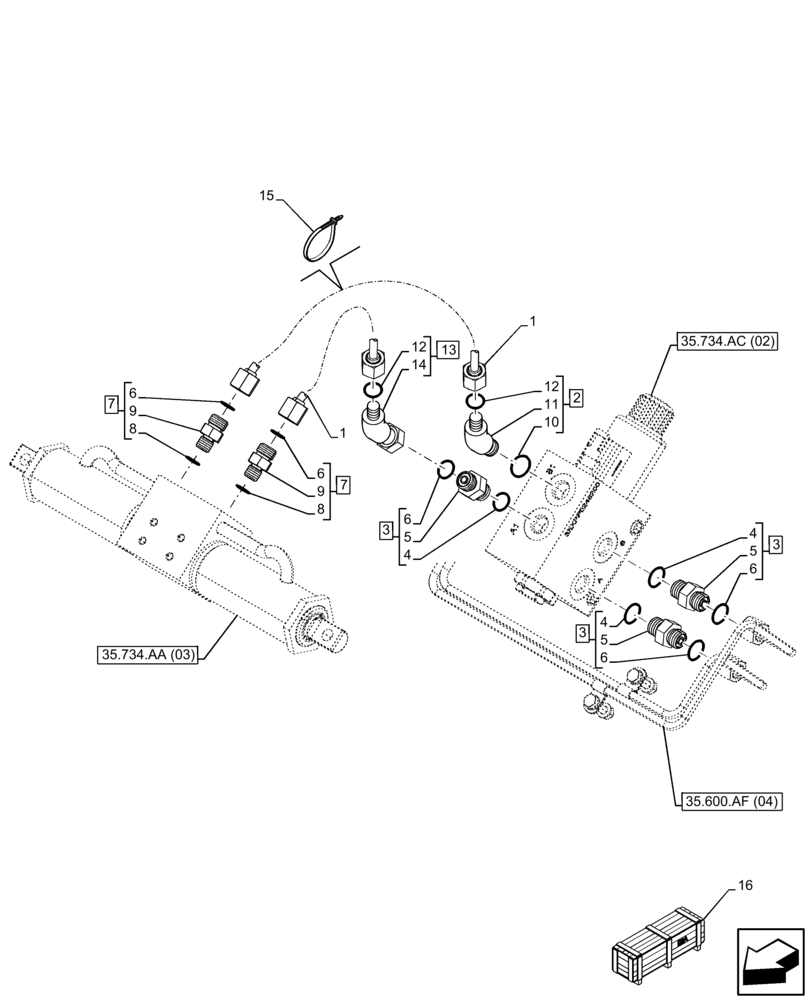

Запчасти Case 21F (35.734.AD[02A]) - VAR - 734517 - HYDRAULIC QUICK COUPLER, LINES - BEGIN DATE 16 JULY 2014 (35) - HYDRAULIC SYSTEMS

1

47714253

HYDRAULIC HOSE

Cylinder Quick Coupler

2шт.

2

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 10, 11, 12 (Qty 1)

1шт.

3

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

3шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

3шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

7

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 6 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Eblow, Incl in 2

1шт.

12

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

13

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 12 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Eblow, Incl in 13

1шт.

15

4982514

CABLE TIE,188mm L

1шт.

16

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
