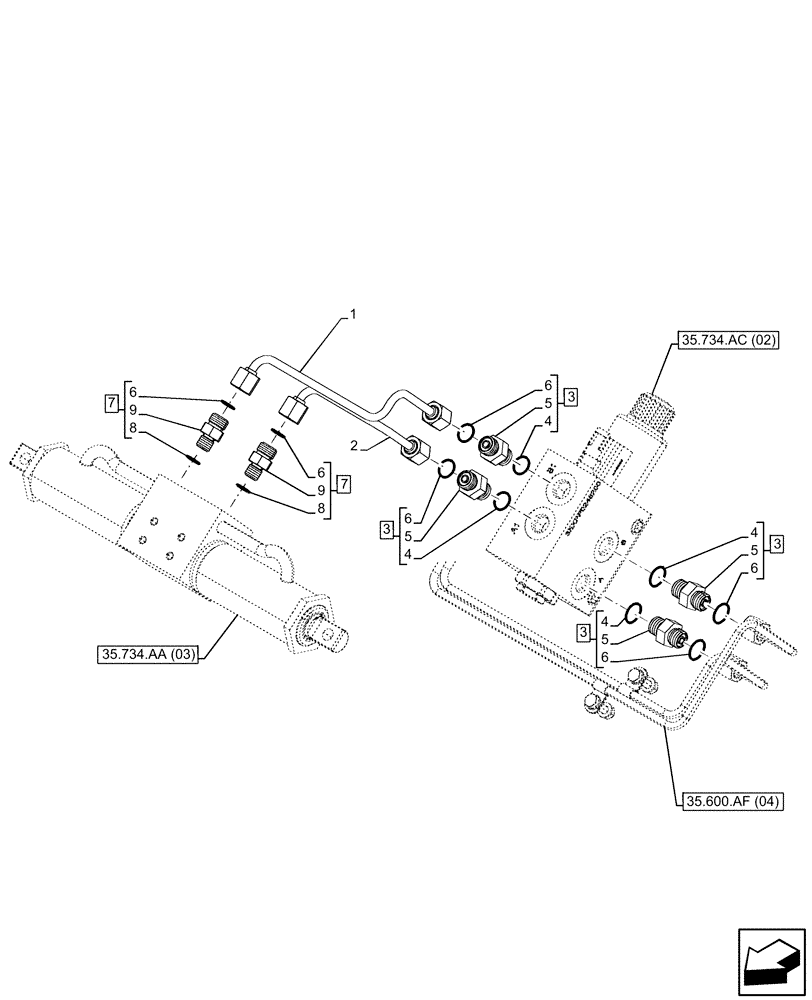

Запчасти Case 21F (35.734.AD[02]) - VAR - 734517 - HYDRAULIC QUICK COUPLER, LINES - END DATE 15 JULY 2014 (35) - HYDRAULIC SYSTEMS

1

47479568

HYD TUBE

Cylinder Quick Coupler

1шт.

2

47479577

HYD TUBE

Cylinder Quick Coupler

1шт.

3

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

4шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

4шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

7

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 6 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.
