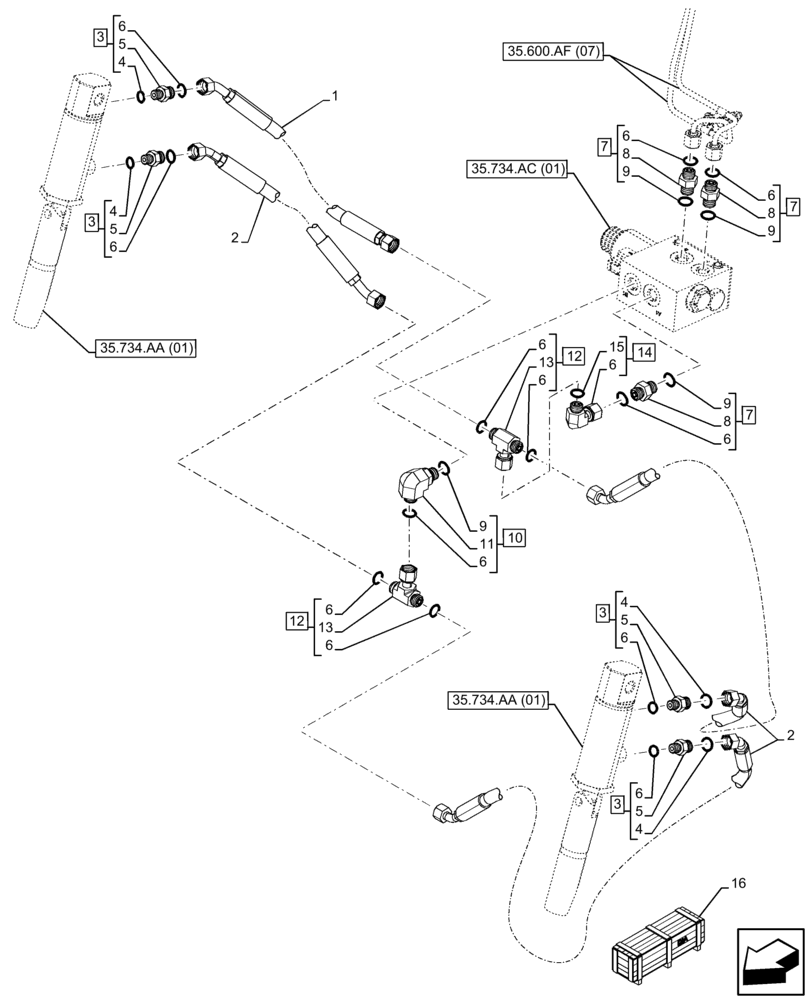

Запчасти Case 21F (35.734.AD[01]) - VAR - 734516 - HYDRAULIC QUICK COUPLER, LINES, END SN NFHP00538 (35) - HYDRAULIC SYSTEMS

1

47537558

FLEXIBLE HOSE

Cylinder to Quick Coupler

1шт.

2

47534588

FLEXIBLE HOSE

Cylinder to Quick Coupler

3шт.

3

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

4шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

4шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

13шт.

7

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 6 (Qty 1), 8 (Qty 1), 9 (Qty 1)

3шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

3шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

10

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 6 (Qty 1), 9 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

84364038

BRANCH TEE

ASSY, Incl 6 (Qty 2), 13 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

Tee, Incl in 12

2шт.

14

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 6 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

47706104

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid TC, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
