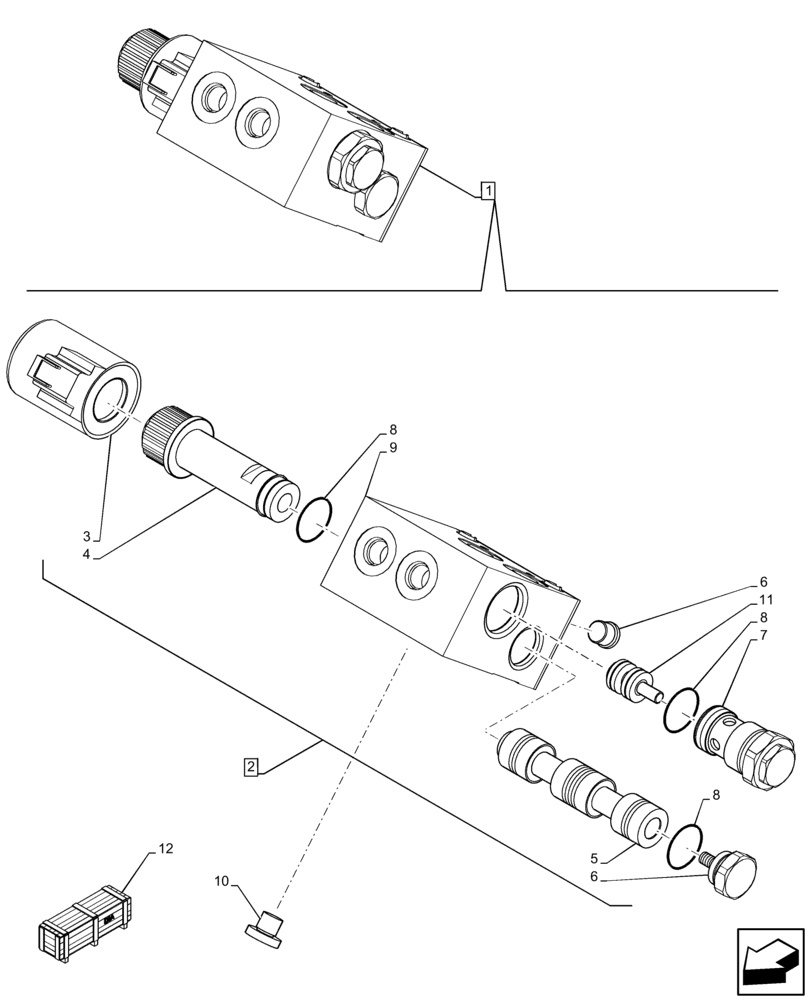

Запчасти Case 21F (35.734.AC[03]) - VAR - 734516, 734517 - HYDRAULIC SYSTEM, QUICK COUPLER, SOLENOID VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47479548

HYDRAULIC VALVE

Quick Coupler, ASSY, Incl 2 - 11

1шт.

2

47629997

SOLENOID VALVE

ASSY, Incl 3 - 6

1шт.

3

47629998

COIL

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

6

47755121

HEX PLUG

1шт.

7

47629995

CHECK VALVE

1шт.

8

47629989

KIT

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

10

47629986

KIT

2шт.

11

47755133

PISTON

1шт.

12

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706104

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706109

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706111

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid W50C - W60C, 21F - 121F, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706112

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid W70C - W80C, 221F - 321F, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
