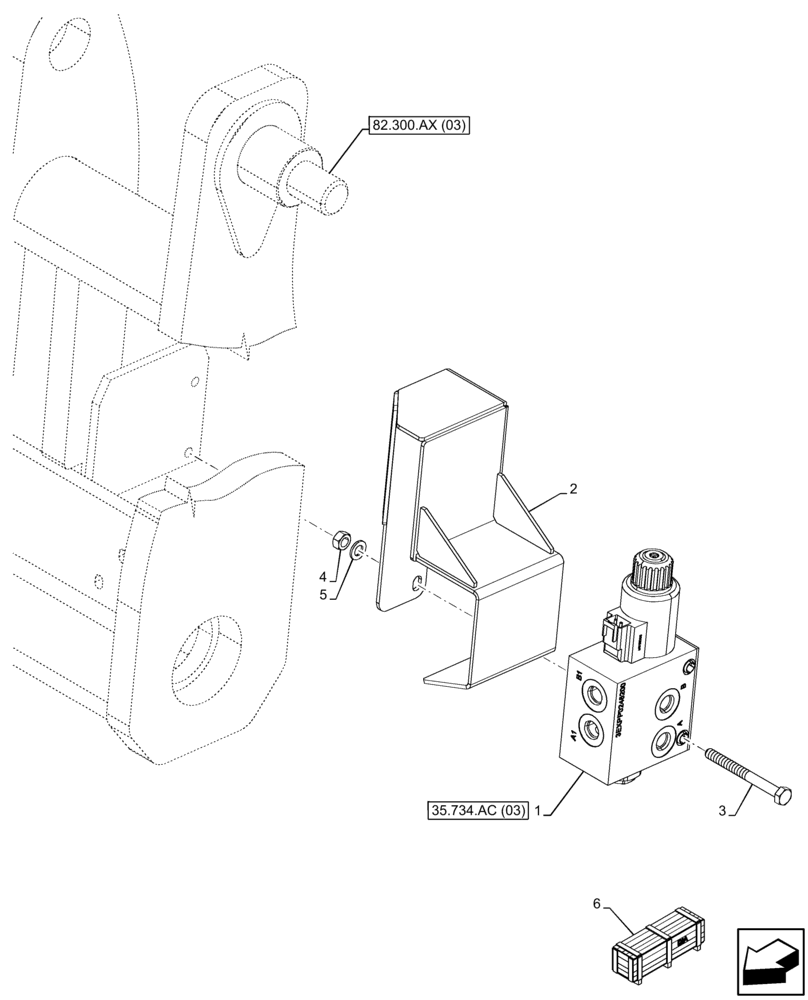

Запчасти Case 21F (35.734.AC[02]) - VAR - 734517 - HYDRAULIC QUICK COUPLER, SOLENOID VALVE (35) - HYDRAULIC SYSTEMS

1

47479548

HYDRAULIC VALVE

ASSY

1шт.

2

47714794

PLATE

, Serial Range: -NFHP00451

1шт.

2

47808882

BRACKET

, Start Serial: NFHP00452

1шт.

3

86516395

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
