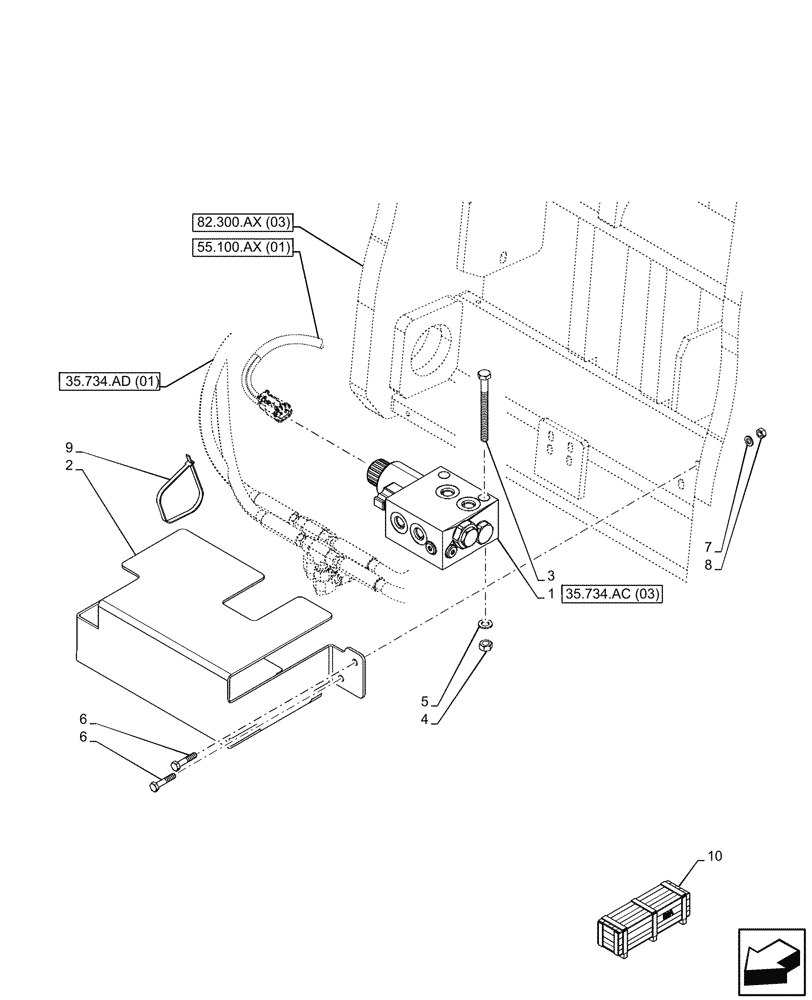

Запчасти Case 21F (35.734.AC[01]) - VAR - 734516 - HYDRAULIC SYSTEM, QUICK COUPLER, SOLENOID VALVE - END SN NFHP00538 (35) - HYDRAULIC SYSTEMS

1

47479548

HYDRAULIC VALVE

Quick Coupler, ASSY

1шт.

2

47570732

PLATE

, Serial Range: -NFHP00028

1шт.

2

47794330

PROTECTION PLATE

, Start Serial: NFHP00029

1шт.

3

16045034

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

, Start Serial: NFHP00029

2шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: NFHP00029

2шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

, Start Serial: NFHP00029

2шт.

9

4982514

CABLE TIE,188mm L

, Start Serial: NFHP00029

2шт.

10

47706104

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid TC, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
