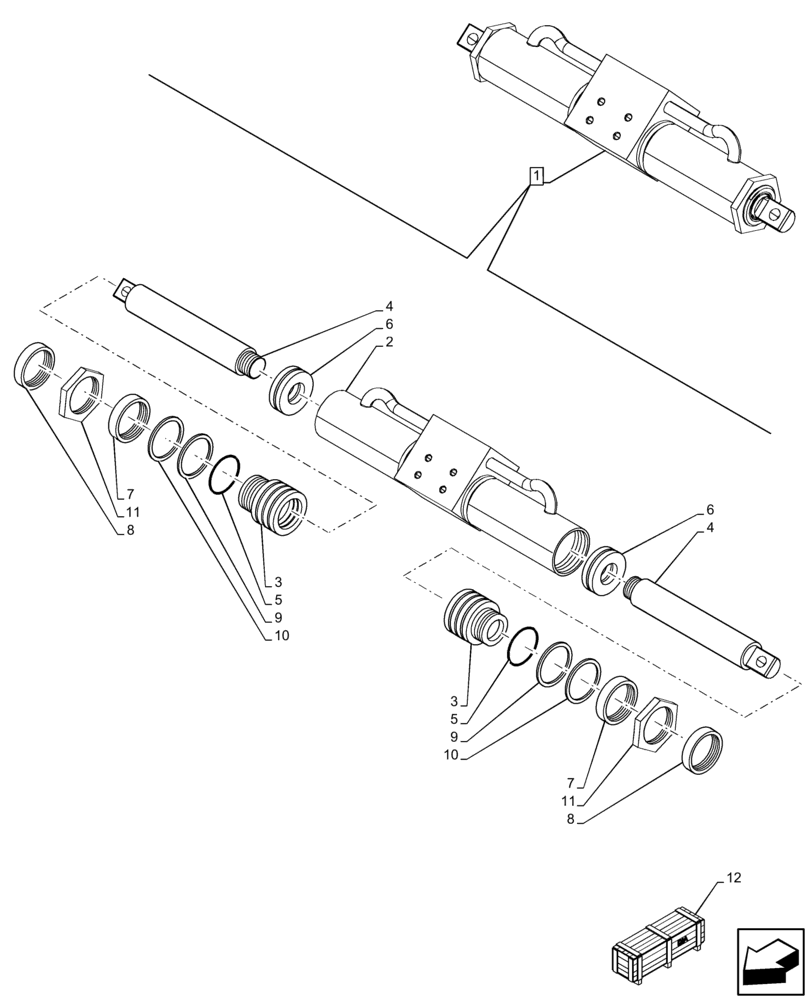

Запчасти Case 21F (35.734.AA[04]) - VAR - 734517 - HYDRAULIC QUICK COUPLER, CYLINDER, COMPONENTS - END DATE 31 JANUARY 2016 (35) - HYDRAULIC SYSTEMS

1

47479304

CYLINDER

ASSY, Incl 2 - 11

1шт.

2

47626668

TUBE

1шт.

3

47626666

CYLINDER HEAD

, Years: -15-JUL-15

2шт.

3

9826106

CYLINDER HEAD

, Start Year: 16-JUL-15

2шт.

4

47626661

PISTON

, Years: -15-JUL-15

2шт.

4

86615970

PISTON ASSY

, Start Year: 16-JUL-15

2шт.

5

47626660

O-RING

2шт.

6

47626657

SEAL

2шт.

7

47626585

SEAL

2шт.

8

47626581

ROD WIPER

, Years: -15-JUL-15

2шт.

8

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

, Start Year: 16-JUL-15

2шт.

9

47626580

RING

, Years: -15-JUL-15

2шт.

9

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

, Start Year: 16-JUL-15

2шт.

10

47626578

RING

, Years: -15-JUL-15

2шт.

10

86516844

SNAP RING,1-19/32" OD

, Start Year: 16-JUL-15

2шт.

11

47626665

BEARING LOCK NUT

, Years: -15-JUL-15

2шт.

11

86516845

BEARING LOCK NUT,Hex, 1-3/8" - 18

, Start Year: 16-JUL-15

2шт.

12

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706109

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
