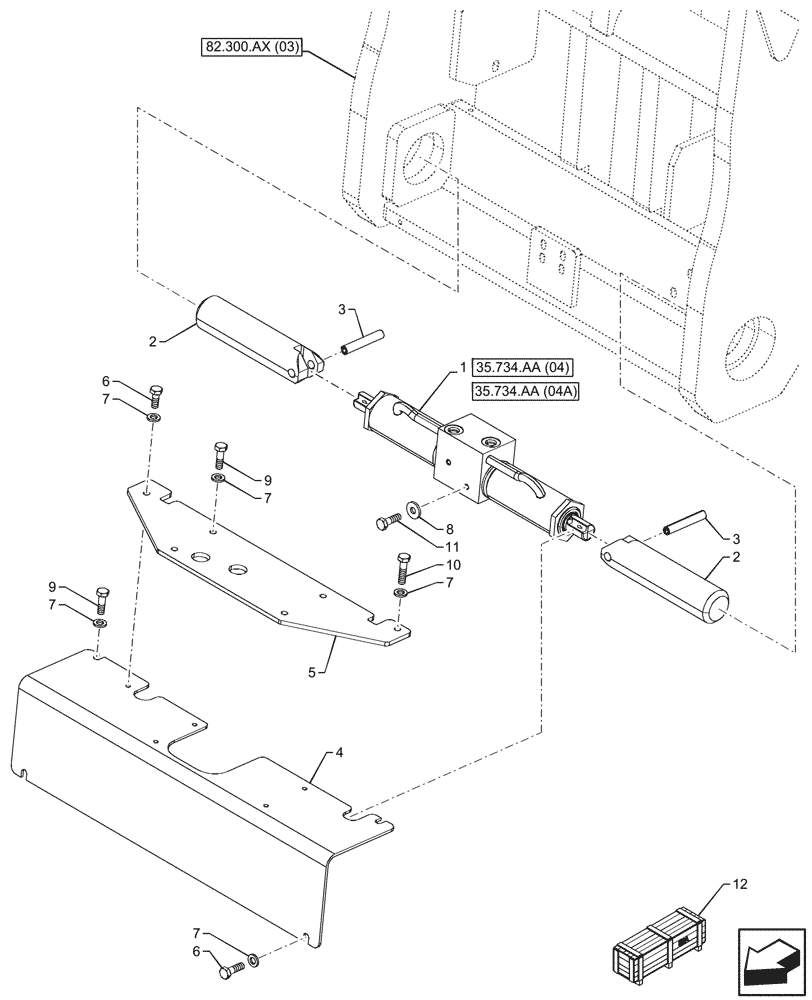

Запчасти Case 21F (35.734.AA[03]) - VAR - 734517 - HYDRAULIC QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

47479304

CYLINDER

ASSY, Years: -31-JAN-16

1шт.

1

47823579

HYDRAULIC CYLINDER

ASSY, Start Year: 01-FEB-16

1шт.

2

47609807

PIN

, Years: -31-JAN-16

2шт.

2

47768992

PIN

, Start Year: 01-FEB-16

2шт.

3

87610718

PIN,9.53mm OD x 57.15mm L

2шт.

4

47500234

PLATE

, Serial Range: -NFHP00451

1шт.

4

47811039

BRACKET

, Start Serial: NFHP00452

1шт.

5

47577330

GASKET

, Years: -15-JUL-14

1шт.

5

47714265

GASKET

, Start Year: 16-JUL-14, Serial Range: -NFHP00451

1шт.

5

47811108

SHEET

, Years: -31-JAN-16, Start Serial: NFHP00452

1шт.

5

47875335

SHEET

, Start Year: 01-FEB-16

1шт.

6

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

8

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

, Years: -15-JUL-14

4шт.

8

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

, Start Year: 16-JUL-14

2шт.

9

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

5шт.

10

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

11

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

, Start Year: 16-JUL-14

2шт.

12

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
