Запчасти Case 21F (35.734.AA[02]) - VAR - 734516 - HYDRAULIC SYSTEM, QUICK COUPLER, CYLINDER, COMPONENTS - END S/N NFHP00486 (35) - HYDRAULIC SYSTEMS

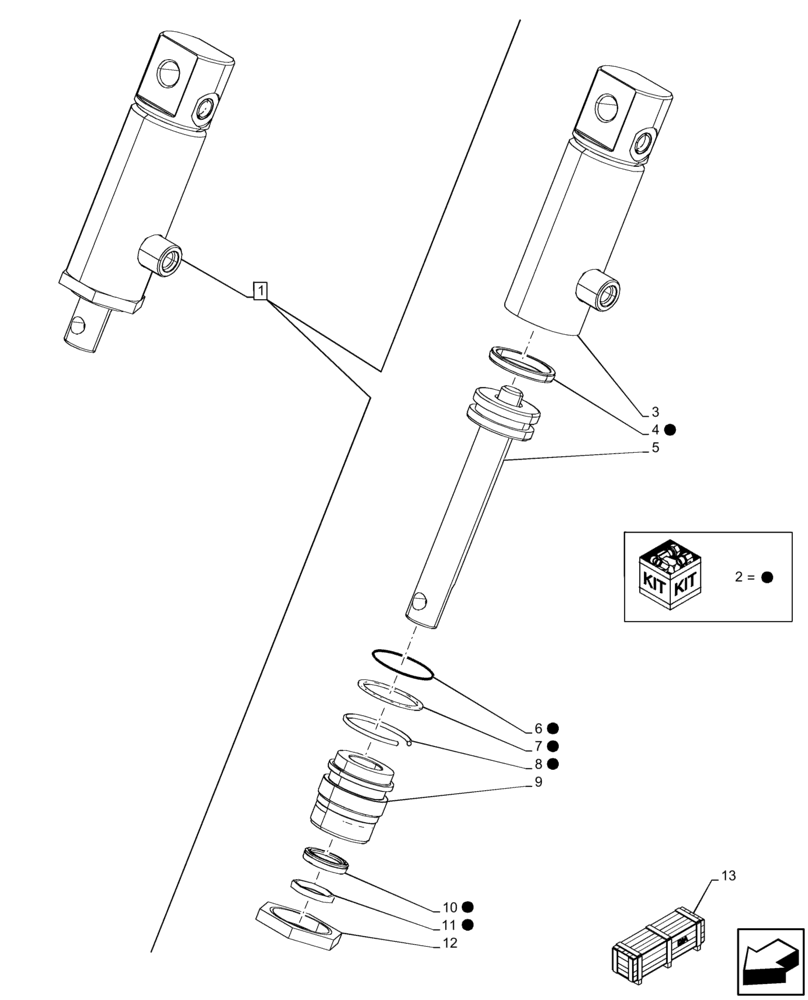

Схема запчастей Case 21F - (35.734.AA[02]) - VAR - 734516 - HYDRAULIC SYSTEM, QUICK COUPLER, CYLINDER, COMPONENTS - END S/N NFHP00486 (35) - HYDRAULIC SYSTEMS
7
2
2
6
8
2
10
2
1
2
5
2
11
12
9
13
2
4
2
3

Артикул

Название

Примечание

Количество

1

47509197

CYLINDER

ASSY, Incl 2 - 12

2шт.

2

86518284

SEAL KIT

Incl 4, 6 - 8, 10, 11

1шт.

3

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in 1

1шт.

4

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

1шт.

5

86615970

PISTON ASSY

1шт.

6

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

7

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

1шт.

8

86516844

SNAP RING,1-19/32" OD

1шт.

9

9826106

CYLINDER HEAD

1шт.

10

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

11

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

1шт.

12

86516845

BEARING LOCK NUT,Hex, 1-3/8" - 18

1шт.

13

47706104

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid TC, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

13

47706111

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid W50C - W60C, 21F - 121F, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

13

47706112

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid W70C - W80C, 221F - 321F, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 18
