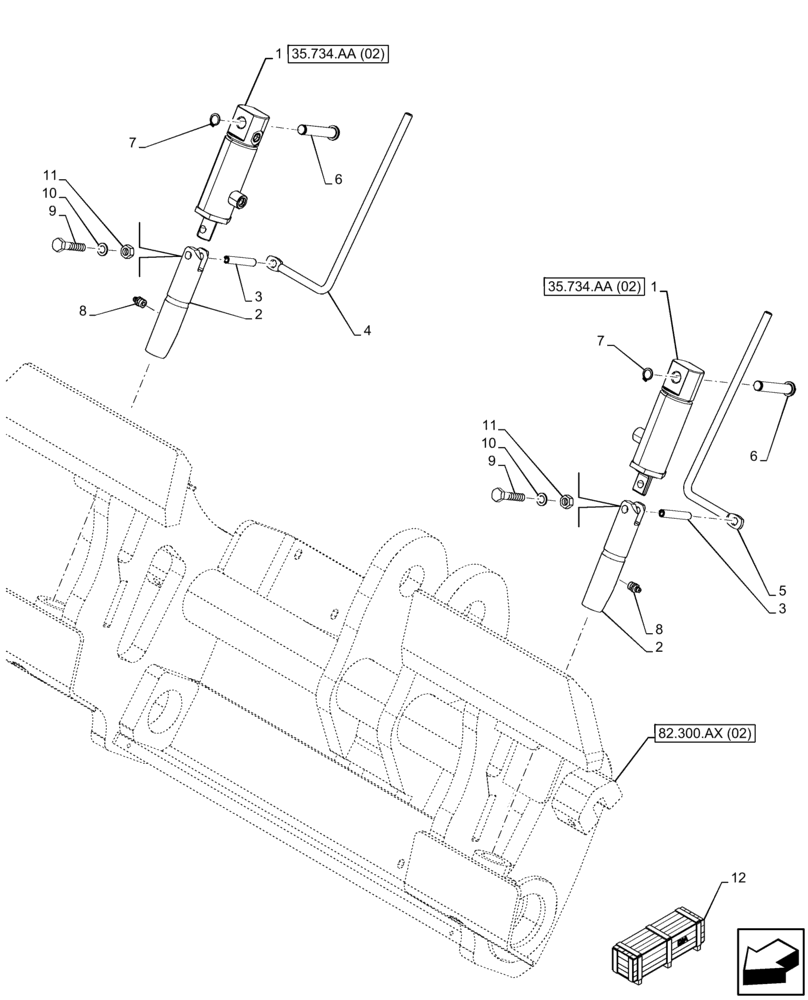

Запчасти Case 21F (35.734.AA[01]) - VAR - 734516 - HYDRAULIC SYSTEM, QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

47509197

CYLINDER

ASSY, Serial Range: -NFHP00486

2шт.

1

47766775

HYDRAULIC CYLINDER

ASSY, Start Serial: NFHP00487

2шт.

2

47503606

PIN

2шт.

3

87610718

PIN,9.53mm OD x 57.15mm L

, Serial Range: -NEHP00219

2шт.

4

47970031

ROD

RH, Position Indicator

1шт.

5

47970042

ROD

LH, Position Indicator

1шт.

6

87387540

PIN,12.7mm OD x 67.55mm L

2шт.

7

87612753

RETAINER,#50, 0.46", Ext

2шт.

8

8412011

LUBE NIPPLE

2шт.

9

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

, Start Serial: NEHP00220

2шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: NEHP00220

2шт.

11

9628098

NUT,M8 x 1.25, Cl 10

, Start Serial: NEHP00220

2шт.

12

47706104

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47706111

CONSTRUCTION DIA

Hydraulic Quick Coupler Skid W50C - W60C, 21F - 121F, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
